Article No. 384003

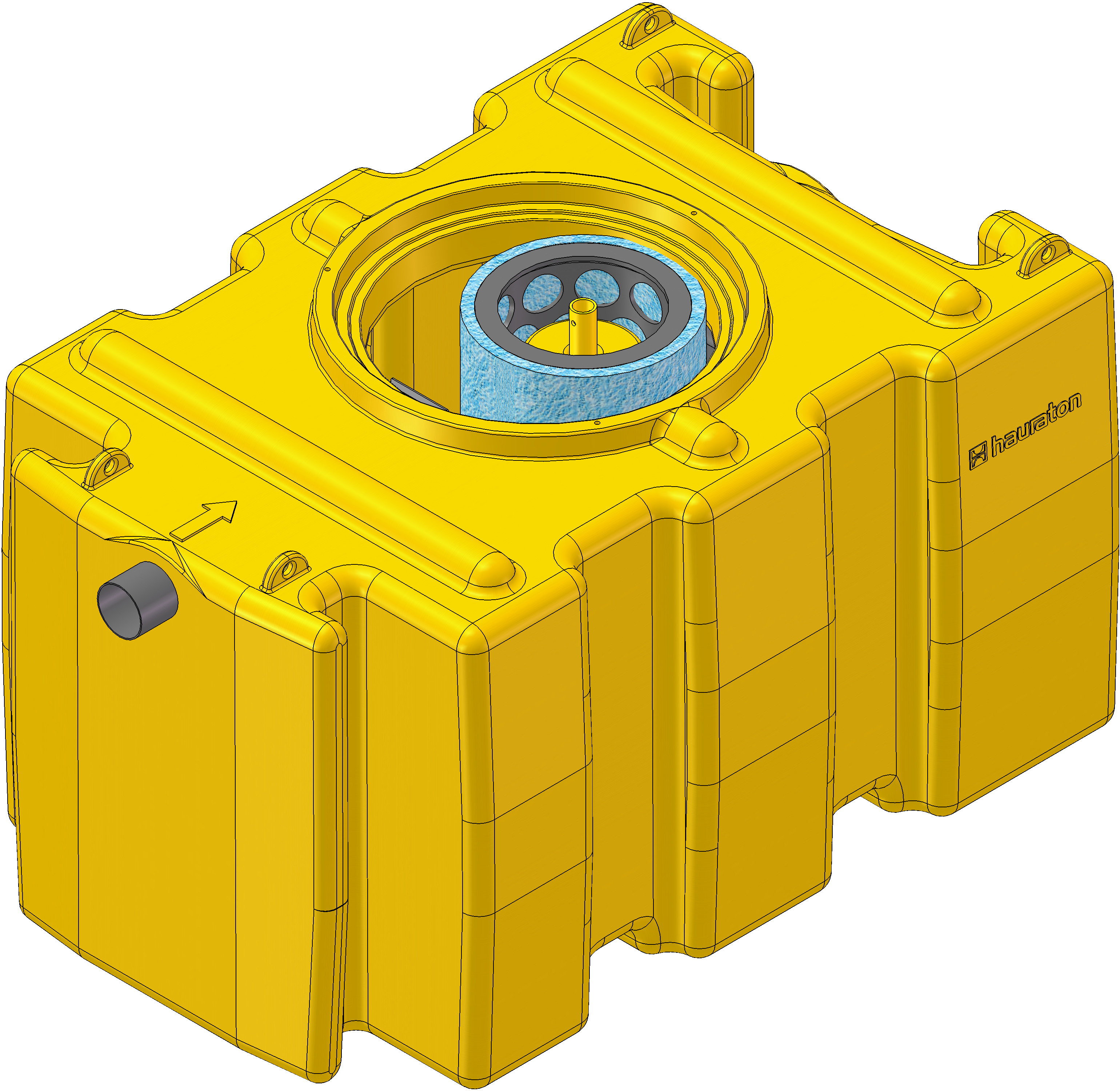

AQUAFIX SKPE Coalescence separator with sludge trap
SKPE 03/0300
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
384003
Length
1895 mm
Width
1200 mm
Height
1040 mm
Weight
128.00 kg
Material
AQUAFIX Coalescence material, AQUAFIX PE
Bypass
without bypass
Durchflussleistung
0.0 l/s
Sludge trap capacity
-
Separator capacity
-
Regelwerke
EN 858
Vertriebstext
AQUAFIX 10 PE coalescence separator with sludge trap SKPE 03/300
Produktbeschreibung
AQUAFIX Sludge-trap Coalescence Separator SKPE 03/0300, nominal size 3, nominal volume 300 l, acc. EN 858, oil separation system with less than 5 mg/l final oil content acc. DIN 38409, part 18, acc. testing requirements EN 858, made of PE, wall thickness >= 10 mm, closure and coalescence part can be lifted out, pipe connection for KG-pipe DN/OD 110, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 1910 x 1200 x 1040 mm, weight 128 KG, item-no. 384003
Verpackungseinheit
70 Unit / Pallet
