Article No. 33435

DACHFIX Drain box, base

Drain box 30 x 30 mm for type 45/75 galvanised

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
33435
Length
300 mm
Width
300 mm
Height
250 mm
Weight
2.81 kg
Material
PVC-U, strip galvanized steel
Nominal size
115, 135, 155, 205, 255
Sales text
DACHFIX STEEL Sump unit 300 type 45/75, galvanised, with PVC-screw socket DN/OD 100, grey and blind cover, galvanised, for DACHFIX STEEL type 45/75
Product description

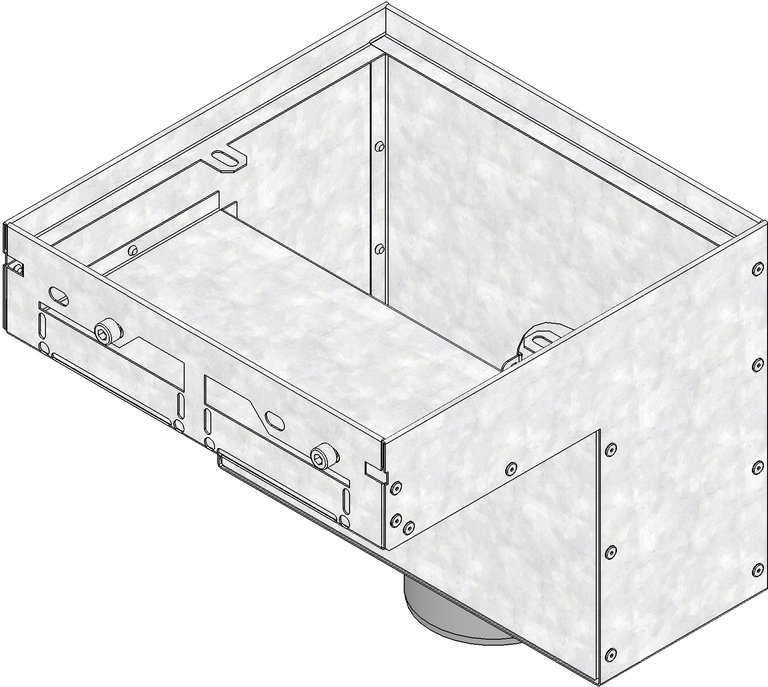

DACHFIX STEEL Drain Box 300 type 45/75 strip galvanised steel, with pvc - screw socket DN/OD 100, grey and blind cover, galvanised, for DACHFIX STEEL type 45 and 75, tilted and riveted, overhanging design, in compliance to the flat roof guideline and DIN 18195, Part 9, t=1,5mm, in accordance to load class A 15 - walkable and wheelchair-accessible, with cover support at the entire inside, easy mountable to channel line, connection vertically as well as horizontally possible with pvc-screw socket DN/OD 100, L/W/H 300x300x250 mm, item no. 33435
Packaging unit
-

Tender Texts

Installation instructions

Installation example

wheelchair accessible, drainage without channel connection

wheelchair accessible, drainage via drain box, vertical connection

wheelchair accessible, drainage via drain box, horizontal connection

wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)

wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)

flagstone surface class Walkable, wheelchair accessible

wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection

wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
