Article No. 69020
DACHFIX STEEL 115
Mesh cover MW 30/10 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

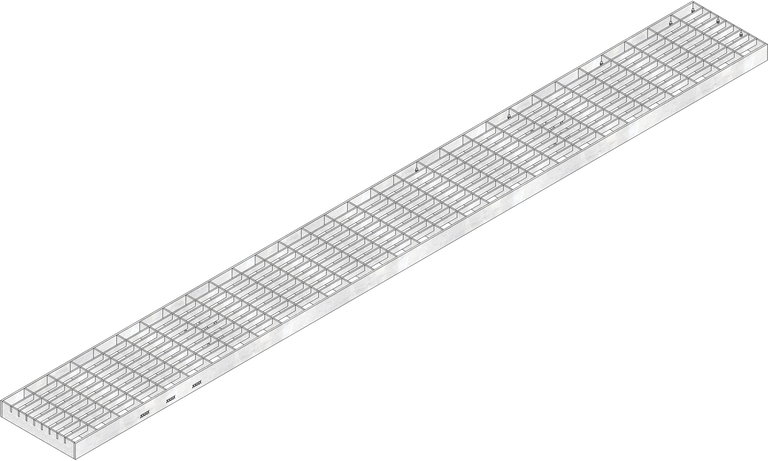

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
69020
Length
1000 mm
Width
108 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
2.23 kg
Material
hot-dip galvanised steel
Intake cross-section
861.0 cm²/m
Nominal size
115
Inlet opening
10
Fixing type
Locking handle
Material cover
hot-dip galvanised steel
Sales text
Mesh cover MS 30/10 mm, galvanised, cl. A 15, 2-fold screwable, DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115, 1 m
Product description
DACHFIX RESIST/DACHFIX STEEL/STEELFIX REGULAR 115 -mesh cover, mesh width 30/10, galvanised, loading class A 15, with double bolting point, installation length 1000 mm, item no. 69020
Packaging unit
260
