Article No. 65100
DACHFIX STEEL 135, height 45 mm
Type 45, galvanised, 1,0 m
Questions?

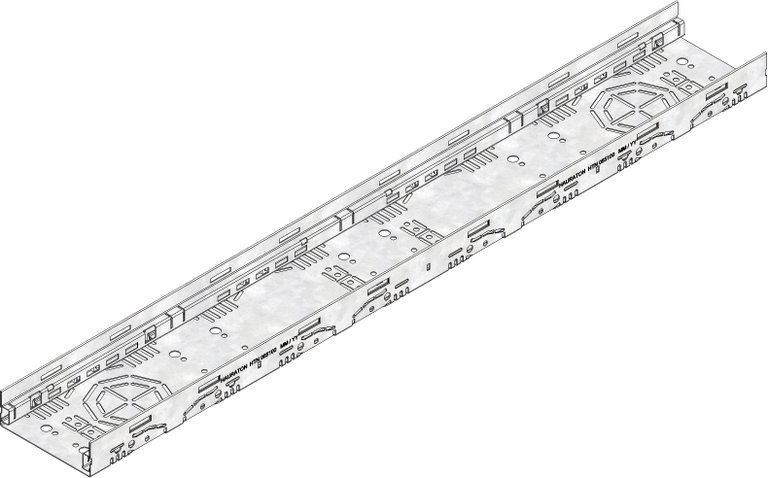

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65100
Length
1000 mm
Width
135 mm
Height
45 mm
Weight
2.26 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
32 cm²
Fall
-
Befestigungsart
Locking handle
Typ nach DIN EN 1433
M
Channel material
strip galvanized steel
Vertriebstext
DACHFIX STEEL Channel 135 type 45 galvanised, height 45 mm, L 1,0 m
Produktbeschreibung
DACHFIX STEEL 135 - Channel type 45, made of corrosion-resistand galvanised steel, walkable and wheelchair-accessible respectively, with perforation on both sides as well as in channel base integrated perforation for on-site performing connection for pipe spigots of DN/OD 75 or DN/OD 110, L/W/H 1000x135x45 mm, Item No. 65100
Verpackungseinheit
352 Unit / Pallet
