Article No. 69047
DACHFIX STEEL 135
Longitudinal cover, bar distance 12 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

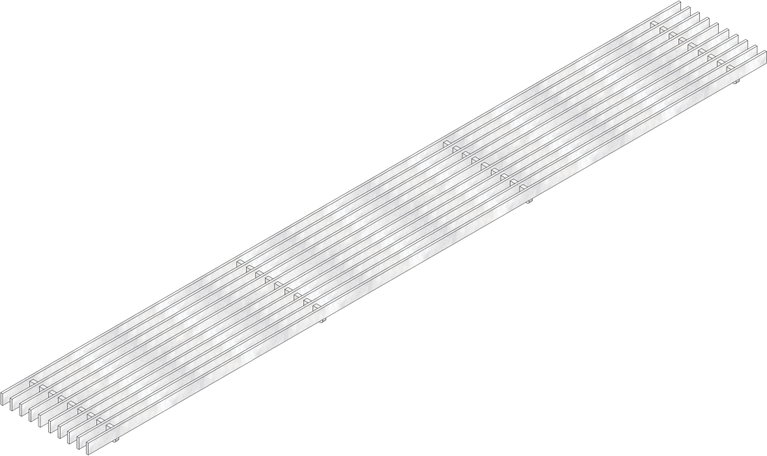

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69047
Length
1000 mm
Width
129 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
3.98 kg
Material
hot-dip galvanised steel
Intake cross-section
974.0 cm²/m
Nominal size
135
Inlet opening
0
Fixing type
Locking handle
Material cover
hot-dip galvanised steel
Sales text
Longitudinal cover bar distance 12 mm, galvanised, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 135, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 135 -longitudinal cover, bar distance 12 mm, galvanised, cl. A 15, installation length 1000 mm, item no. 69047
Packaging unit
233
