Article No. 65235

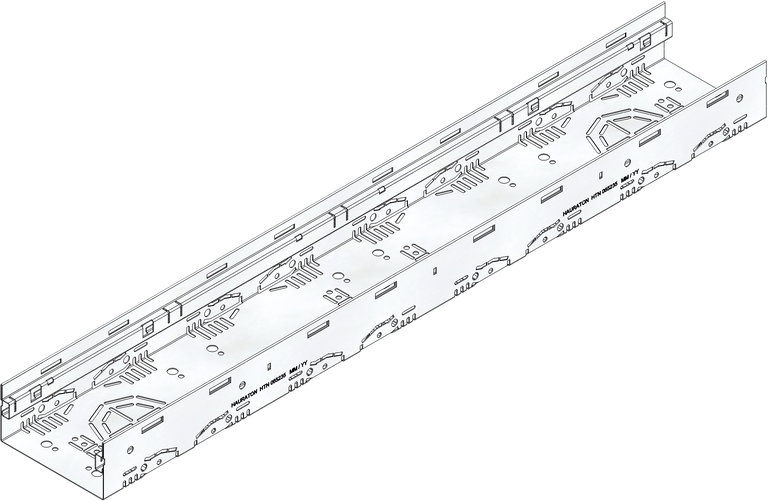

DACHFIX STEEL 155, height 75 mm
Type 75, stainless steel, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
65235
Length
1000 mm
Width
155 mm
Height
75 mm
Weight
2.94 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
155
Internal channel cross-section
83 cm²
Fall
-
Befestigungsart
Locking handle
Typ nach DIN EN 1433
M
Channel material
Stainless steel 1.4301
Vertriebstext
DACHFIX STEEL Channel 155 Type 75 stainless steel, height 75 mm, L 1,0 m
Produktbeschreibung
DACHFIX STEEL 155 - channel type 75, made of stainless steel CNS 1.4301 (AISI 304), suitable for pedestrian traffic and wheelchair-accessible, cover support tilted inwards, with two-sided perforation as well as in channel base integrated perforation for on-site performing for pipe connection element of DN/OD 75 or DN/OD 110, L/W/H 1000x155x75 mm, item no. 65235
Verpackungseinheit
182 Unit / Pallet
