Article No. 69012
DACHFIX STEEL 155
Mesh cover, MW 30/10 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

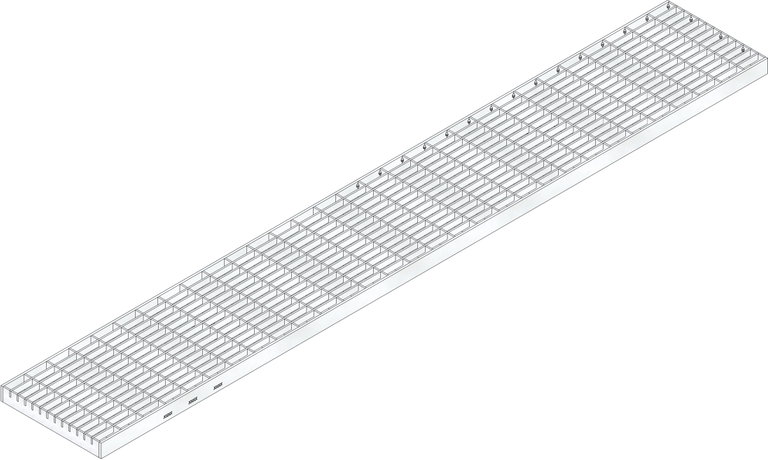

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
69012
Length
1000 mm
Width
150 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
3.62 kg
Material
Stainless steel 1.4301
Intake cross-section
1080.0 cm²/m
Nominal size
155
Inlet opening
10
Fixing type
Locking handle
Material cover
Stainless steel 1.4301
Sales text
Mesh cover MS 30/10 mm, stainless steel, cl. A 15, 2-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 155, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 155 -mesh cover, mesh width 30/10, stainless steel CNS 1.4301 (AISI 304), loading capacity A 15, with twofold screw connection plate, length 1000 mm, item no. 69012
Packaging unit
252
