Article No. 69049
DACHFIX STEEL 205
Longitudinal cover baar distance 12 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

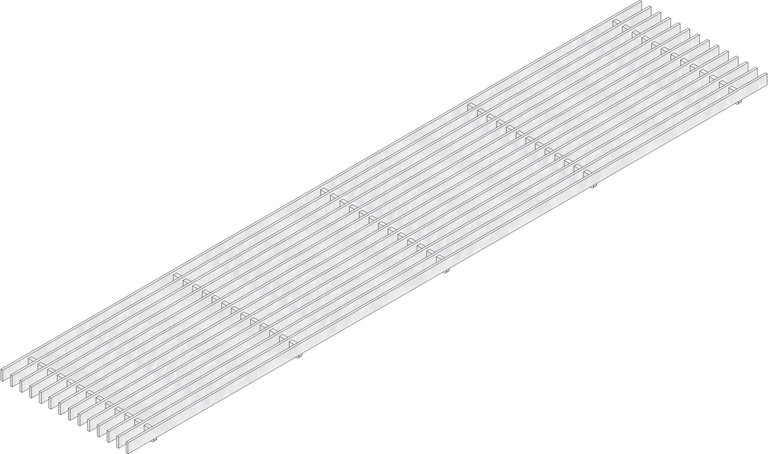

Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69049
Length
1000 mm
Width
199 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
5.83 kg
Material
hot-dip galvanised steel
Intake cross-section
1528.0 cm²/m
Nominal size
205
Inlet opening
0
Fixing type
Locking handle
Material cover
hot-dip galvanised steel
Sales text
Longitudinal cover bar distance 12 mm, galvanised, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 205, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 205 -longitudinal cover, bar distance 12 mm, galvanised, loading class A 15, installation length 1000 mm, item no. 69049
Packaging unit
160
