Article No. 96540
DRAINFIX TWIN, Multi-function shafts
PE-shaft
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

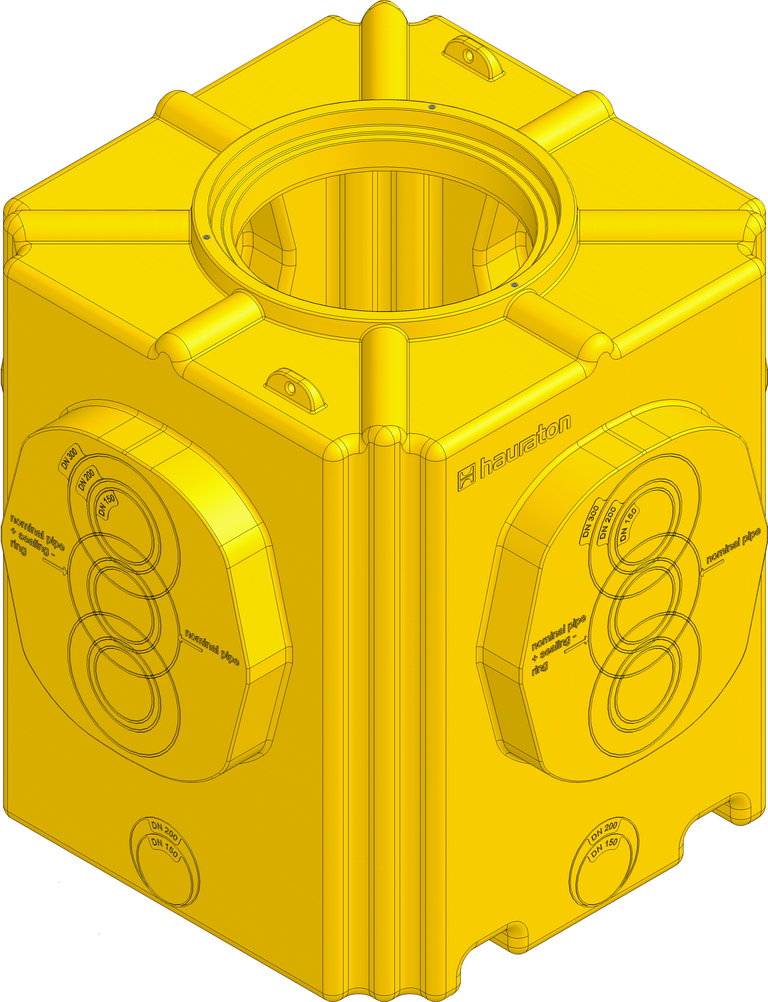

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
96540
Length
1280 mm
Width
1280 mm
Height
1460 mm
Weight
100.00 kg
Material
PE-HD
Nominal size
-
Sales text
Multifunction gully, yellow, made of composite, for DRAINFIX TWIN
Product description
DRAINFIX TWIN multi-function shaft made of composite, wall thickness 10 mm, with preforming for inspection opening and connection possibility DN 680 on all four sides, regarding the foundation depth of the shaft, please consider if extension parts are used, L/W/H 1520/1520/1460 mm, art. no. 96540
Packaging unit
1
Volume
0.0 l
Tender Texts
Installation guide
Installation guide
Installation example
green space class Walkable, DRAINFIX TWIN 0/1, 1/1
green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 1/0 (3x)
green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 1/0 in two levels
green space class Walkable, DRAINFIX TWIN 1 (3x)
Pavement class SLW 30, DRAINFIX TWIN 0/1, 1/1, 1/0 (3x)
Pavement class SLW 30, DRAINFIX TWIN 0/1, 1/1, 1/0 in two levels
Asphalt class SLW 30, DRAINFIX TWIN 1 (3x)
