Article No. 26000

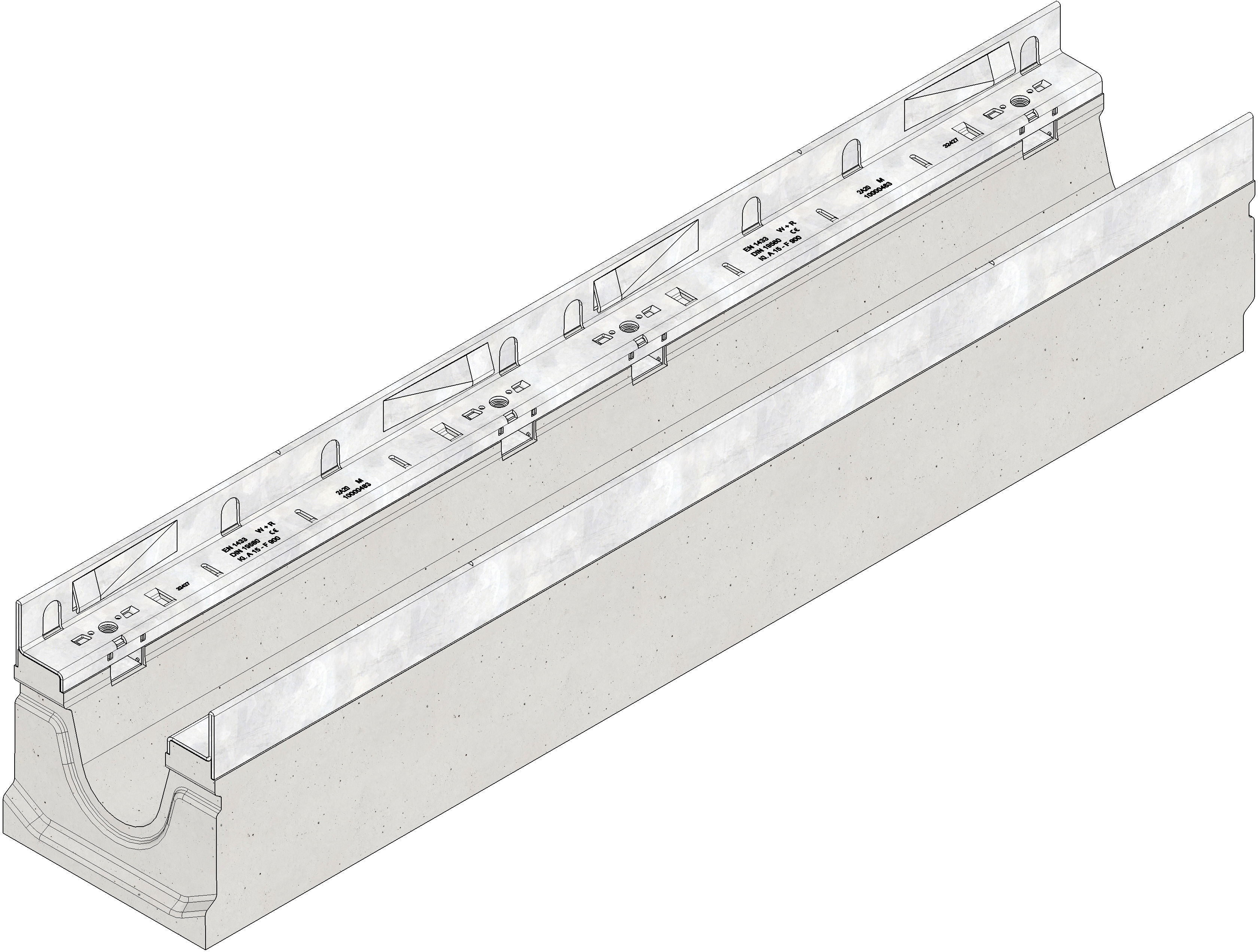

FASERFIX SUPER 100 with galvanised angle housings, up to load class F 900
Type 01, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
26000
Length
1000 mm
Width
190 mm
Height
190 mm
Weight
53.40 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
100
Internal channel cross-section
80 cm²
Fall
-
Befestigungsart
SIDE-LOCK, Bolting
Typ nach DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regelwerke
EN 1433, DIN 19580
Vertriebstext
FASERFIX SUPER Channel 100 Type 01
Produktbeschreibung
FASERFIX SUPER 100 type 01 - channel body made of fibre reinforced concrete, loading capacity from A 15 to F 900 according to EN 1433, CE compliant, with with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, cover insertion depth 40 mm, L/W/H 1000x190x190 mm, item no. 26000
Verpackungseinheit
24 Unit / Pallet
