Article No. 22463
FASERFIX SUPER 150, class D 400
Ductile iron cover, SW 150/18 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

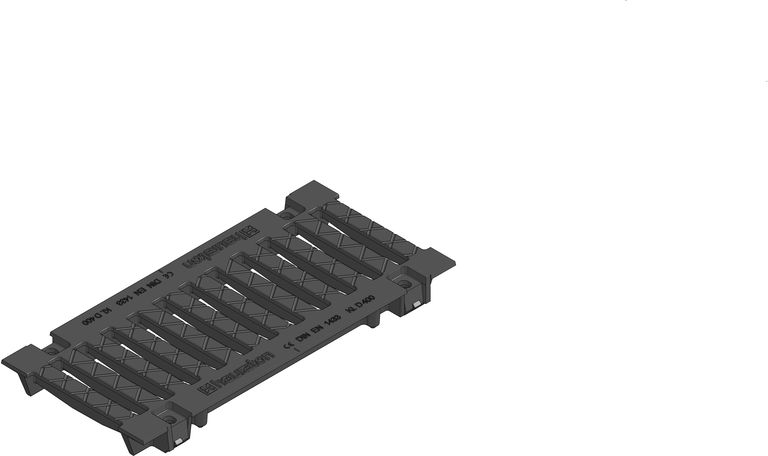

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
22463
Length
500 mm
Width
229 mm
Height
47 mm
Einlegetiefe
40 mm
Weight
7.44 kg
Material
Ductile iron GJS 500-7
Intake cross-section
624.0 cm²/m
Nominal size
150
Inlet opening
18
Vertriebstext
SIDE-LOCK, Bolting
Material cover
Ductile iron GJS 500-7
Vertriebstext
EN 1433, DIN 19580
Vertriebstext
Ductile iron cover SW 150/18 mm, black, cl. D 400, FASERFIX SUPER 150, 0.5 m
Vertriebstext
FASERFIX SUPER 150 - Ductile iron cover made of spheroidal ductile iron GJS 500-7, slot width 150/18 mm, black, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 22463
Vertriebstext
98
Declaration of Performance
