Article No. 22042

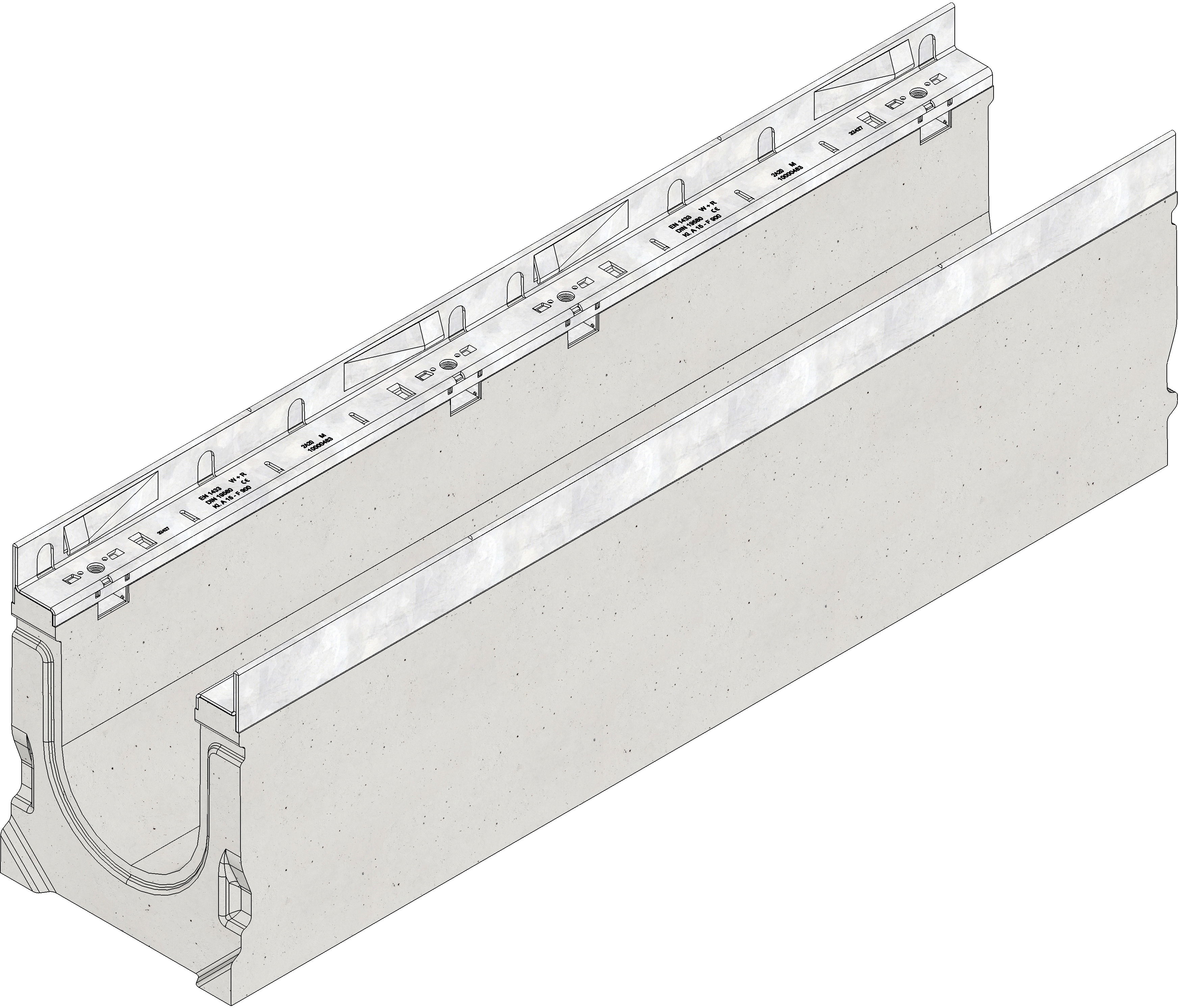

FASERFIX SUPER 150 with galvanised angle housings, up to load class F 900
Type 010, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
22042
Length
1000 mm
Width
240 mm
Height
300 mm
Weight
84.40 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
272 cm²
Fall
-
Befestigungsart
SIDE-LOCK, Bolting
Typ nach DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regelwerke
EN 1433, DIN 19580
Vertriebstext
FASERFIX SUPER 150 channel type 010
Produktbeschreibung
FASERFIX SUPER 150 type 010 - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, cover insertion depth 40 mm, L/W/H 1000x240x300 mm, item no. 22042
Verpackungseinheit
15 Unit / Pallet
