Article No. 23768
FASERFIX SUPER 200, class E 600
GUGI-ductile iron mesh cover, MW 15/25 mm, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

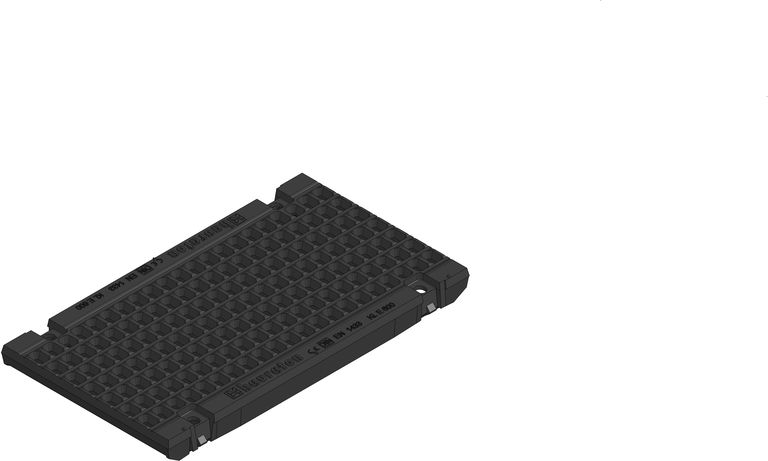

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
23768
Length
500 mm
Width
279 mm
Height
47 mm
Einlegetiefe
40 mm
Weight
12.75 kg
Material
Ductile iron GJS 500-7
Intake cross-section
832.0 cm²/m
Nominal size
200
Inlet opening
25
Fixing type
SIDE-LOCK, Bolting
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
GUGI-ductile iron mesh cover MS 15/25 mm, KTL-coated, cl. E 600, FASERFIX SUPER 200, 0.5 m
Product description
FASERFIX SUPER 200 - GUGI-Ductile iron mesh cover MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 23768
Packaging unit
84
Declaration of Performance
