Article No. 23061
FASERFIX SUPER 200, class F 900
Ductile iron cover SW 170/20 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

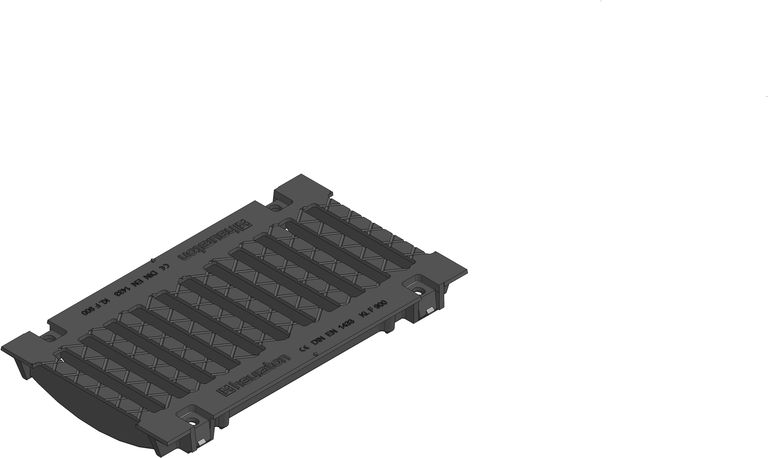

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
23061
Length
500 mm
Width
279 mm
Height
62 mm
Einlegetiefe
40 mm
Weight
13.07 kg
Material
Ductile iron GJS 500-7
Intake cross-section
833.0 cm²/m
Nominal size
200
Inlet opening
20
Fixing type
SIDE-LOCK, Bolting
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron cover SW 170/20 mm, black, cl. F 900, FASERFIX SUPER 200, 0.5 m
Product description
FASERFIX SUPER 200 - Ductile iron cover SW 170/20 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 23061
Packaging unit
84
Declaration of Performance
