Article No. 23049
FASERFIX SUPER 200 with galvanised angle housings, up to load class F 900
Type 01, 0,5 m
Questions?

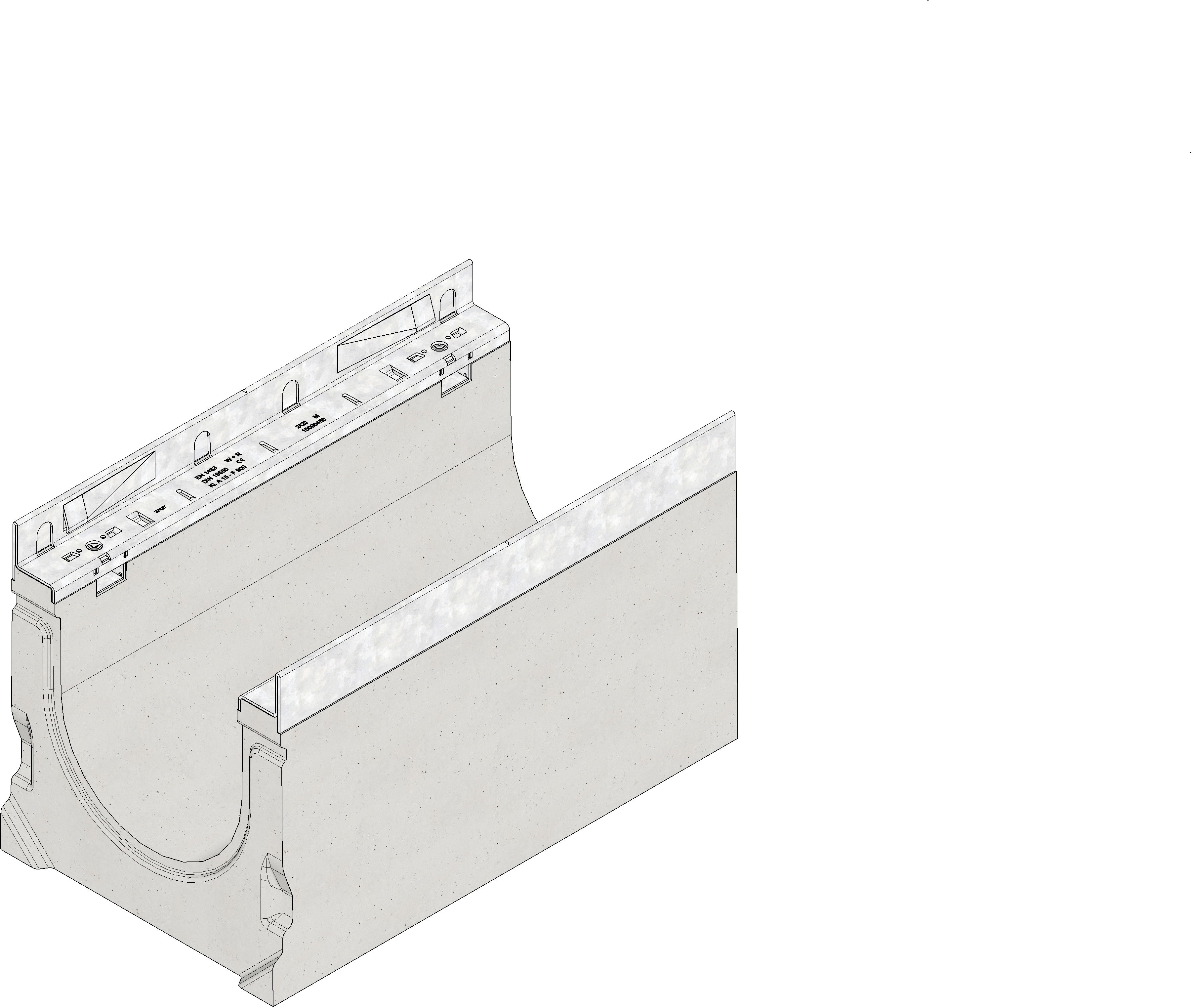

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
23049
Length
500 mm
Width
290 mm
Height
305 mm
Weight
49.00 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
200
Internal channel cross-section
362 cm²
Fall
-
Befestigungsart
SIDE-LOCK, Bolting
Typ nach DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regelwerke
EN 1433, DIN 19580
Vertriebstext
FASERFIX SUPER 200 channel type 01
Produktbeschreibung
FASERFIX SUPER 200 type 01 - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, fourfold locking, without crossing bars in the channel line, with sealing groove, insert depth cover 40 mm, L/W/H 500x290x305 mm, item no. 23049
Verpackungseinheit
24 Unit / Pallet
