Article No. 23042
FASERFIX SUPER 200 with galvanised angle housings, up to load class F 900
Type 010, 1,0 m
Questions?

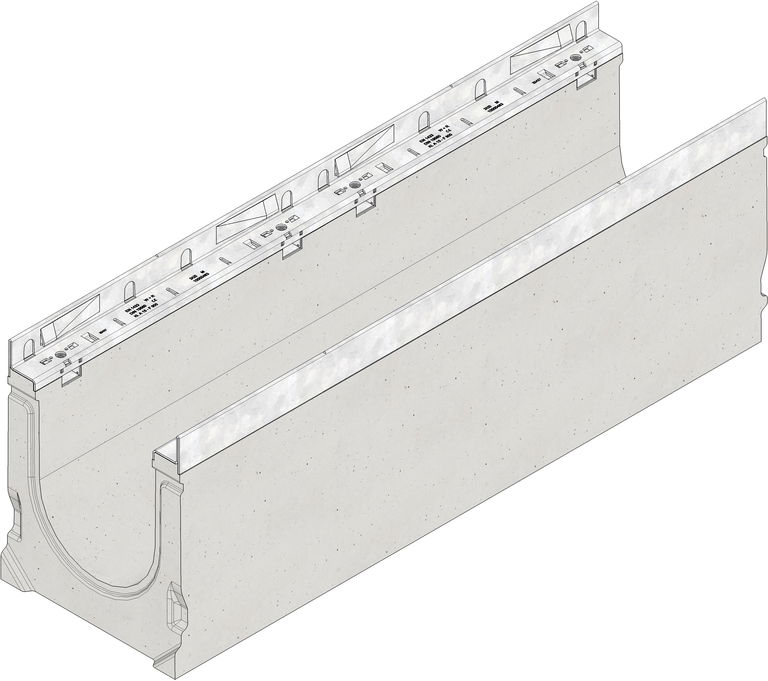

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
23042
Length
1000 mm
Width
290 mm
Height
350 mm
Weight
112.10 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
200
Internal channel cross-section
447 cm²
Fall
-
Befestigungsart
SIDE-LOCK, Bolting
Typ nach DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regelwerke
EN 1433, DIN 19580
Vertriebstext
FASERFIX SUPER 200 channel type 010
Produktbeschreibung
FASERFIX SUPER 200 type 010 - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, insert depth cover 40 mm, L/W/H 1000x290x350 mm, item no. 23042
Verpackungseinheit
8 Unit / Pallet
