Article No. 23044
FASERFIX SUPER 200 with galvanised angle housings, up to load class F 900
Type 020, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

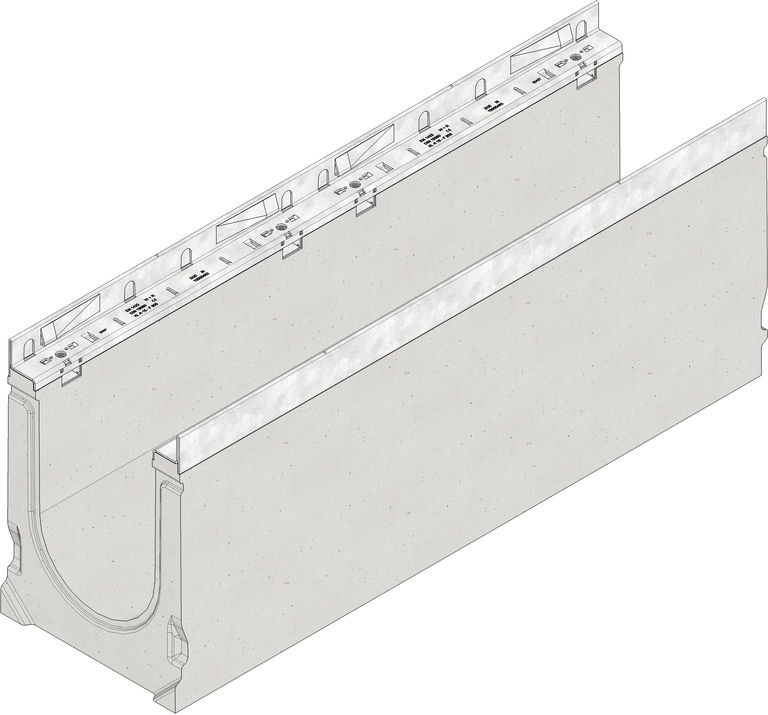

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
23044
Length
1000 mm
Width
290 mm
Height
400 mm
Weight
113.74 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
200
Internal channel cross-section
540 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 200 Channel body type 020 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX SUPER 200 type 020 - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel, with boltless quick-locking system SIDE-LOCK for quick and easy installation of the cover, 8-fold bolting additionally possible, 8-fold locking, with sealing groove, cover inlay depth 40 mm, LxWxH 1000x290x400 mm, item no. 23044
Packaging unit
8
Declaration of Performance
Tender Texts
Installation example
Pavement class D 400, Type I
Concrete class A 15 - C 250, Flat channel
Pavement class A 15 - C 250, Flat channel
Pavement class A 15 - C 250, in ramps
Concrete / Cemented floor class A 15 - C 250, in ramps
Pavement class A 15 - C 250,
Asphalt class D 400,
Asphalt class D 400, in ramps
Asphalt class D 400, with curb
Concrete class D 400, with curb
Asphalt class D 400 - E 600,
Concrete class D 400 - E 600,
Pavement / large-size slab class D 400,
Asphalt class D 400, Type I
Concrete class D 400, Type I
Asphalt class D 400 - E 600,
Asphalt class D 400 - E 600, with ledge stone
Pavement class D 400 - E 600, in ramps
Concrete class D 400 - F 900, in ramps
Concrete class E 600,
Pavement / large-size slab class E 600 - F 900,
Pavement class E 600 - F 900, Channel height ≥ 235 mm
Asphalt class F 900,
Concrete class F 900,
Pavement class A 15 - C 250, as double strand
Concrete class D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Asphalt class F 900, as double strand
Installation instructions
