Article No. 24563
FASERFIX SUPER 300, class D 400
Ductile iron cover, SW 2 x 136/18 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

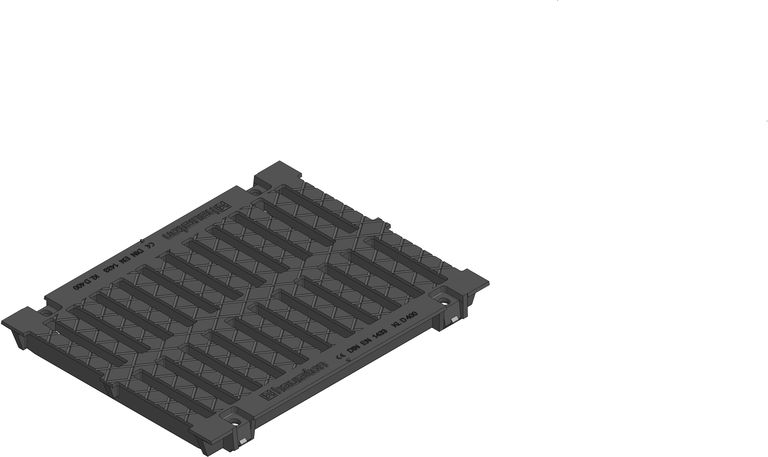

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
24563
Length
500 mm
Width
379 mm
Height
52 mm
Einlegetiefe
40 mm
Weight
16.90 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1150.0 cm²/m
Nominal size
300
Inlet opening
18
Fixing type
SIDE-LOCK, Bolting
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron cover, 2x SW 136/18 mm, black, cl. D 400, FASERFIX SUPER 300, 0.5 m
Product description
FASERFIX SUPER 300 - Ductile iron cover made of spheroidal ductile iron GJS 500-7, slot width 2x 136/18 mm, black, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 24563
Packaging unit
50
Declaration of Performance
