Article No. 24105
FASERFIX SUPER 300 with galvanised angle housings, up to load class F 900
Type 01 E, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
24105
Length
1000 mm
Width
390 mm
Height
415 mm
Weight
136.40 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
900 cm²
Fall
-
Befestigungsart
SIDE-LOCK, Bolting
Typ nach DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regelwerke
EN 1433, DIN 19580
Vertriebstext

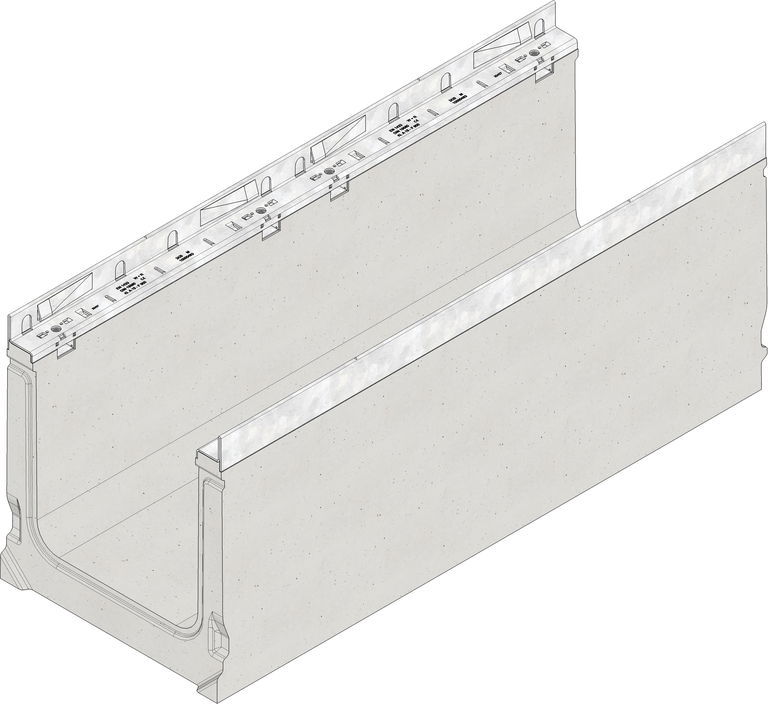

FASERFIX SUPER 300, angular channel type 01
Produktbeschreibung
FASERFIX SUPER 300 type 01 angular - channel body made of fibre reinforced concrete, loading capacity from A 15 up to E 600 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, cover insertion depth 40 mm, L/W/H 1000x390x415 mm, item no. 24105
Verpackungseinheit
6 Unit / Pallet
