Article No. 24663
FASERFIX SUPER 400, class D 400
Ductile iron cover, SW 3x 120/18 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

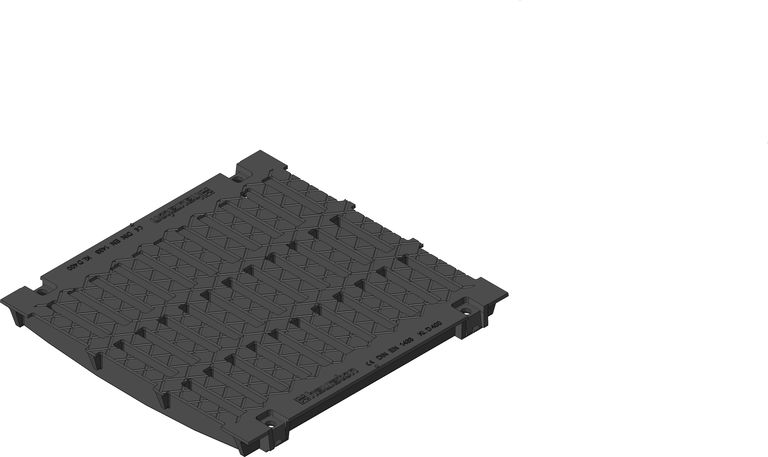

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
24663
Length
500 mm
Width
477 mm
Height
56 mm
Einlegetiefe
40 mm
Weight
25.42 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1420.0 cm²/m
Nominal size
400
Inlet opening
18
Fixing type
SIDE-LOCK, Bolting
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron cover 3x 120/18 mm, black, cl. D 400, FASERFIX SUPER 400, 0.5 m,
Product description
FASERFIX SUPER 400 - Ductile iron cover made of spheroidal ductile iron GJS 500-7, slot width 3x 120/18 mm, black with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 24663
Packaging unit
32
Declaration of Performance
