Article No. 24182

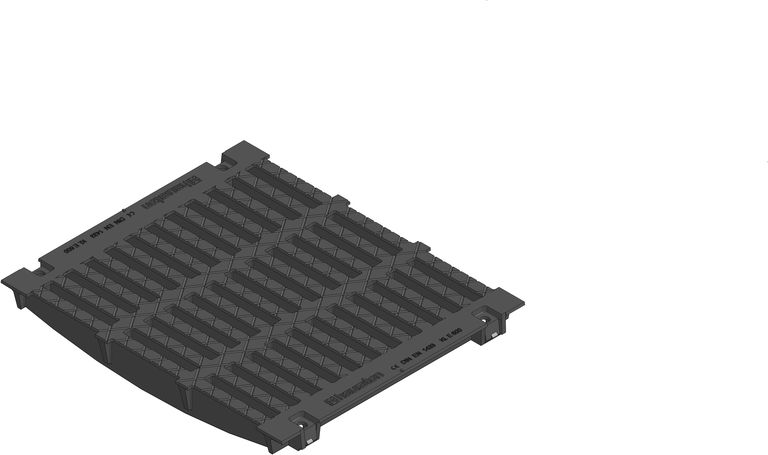

FASERFIX SUPER 500, class E 600
Ductile iron cover, SW 3 x 150/20 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
24182
Length
500 mm
Width
579 mm
Height
70 mm
Einlegetiefe
40 mm
Weight
41.20 kg
Material
Ductile iron GJS 500-7
Intake cross-section
2059.0 cm²/m
Nominal size
500
Inlet opening
20
Fixing type
SIDE-LOCK, Bolting
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron cover 3x SW 140/20 mm, black, cl. E 600, FASERFIX SUPER 500, 0.5 m
Product description
FASERFIX SUPER 500 - Ductile iron cover made of spheroidal ductile iron GJS 500-7 slot width 3x 150x20 mm, black, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 24182
Packaging unit
24
Declaration of Performance
