Article No. 24121

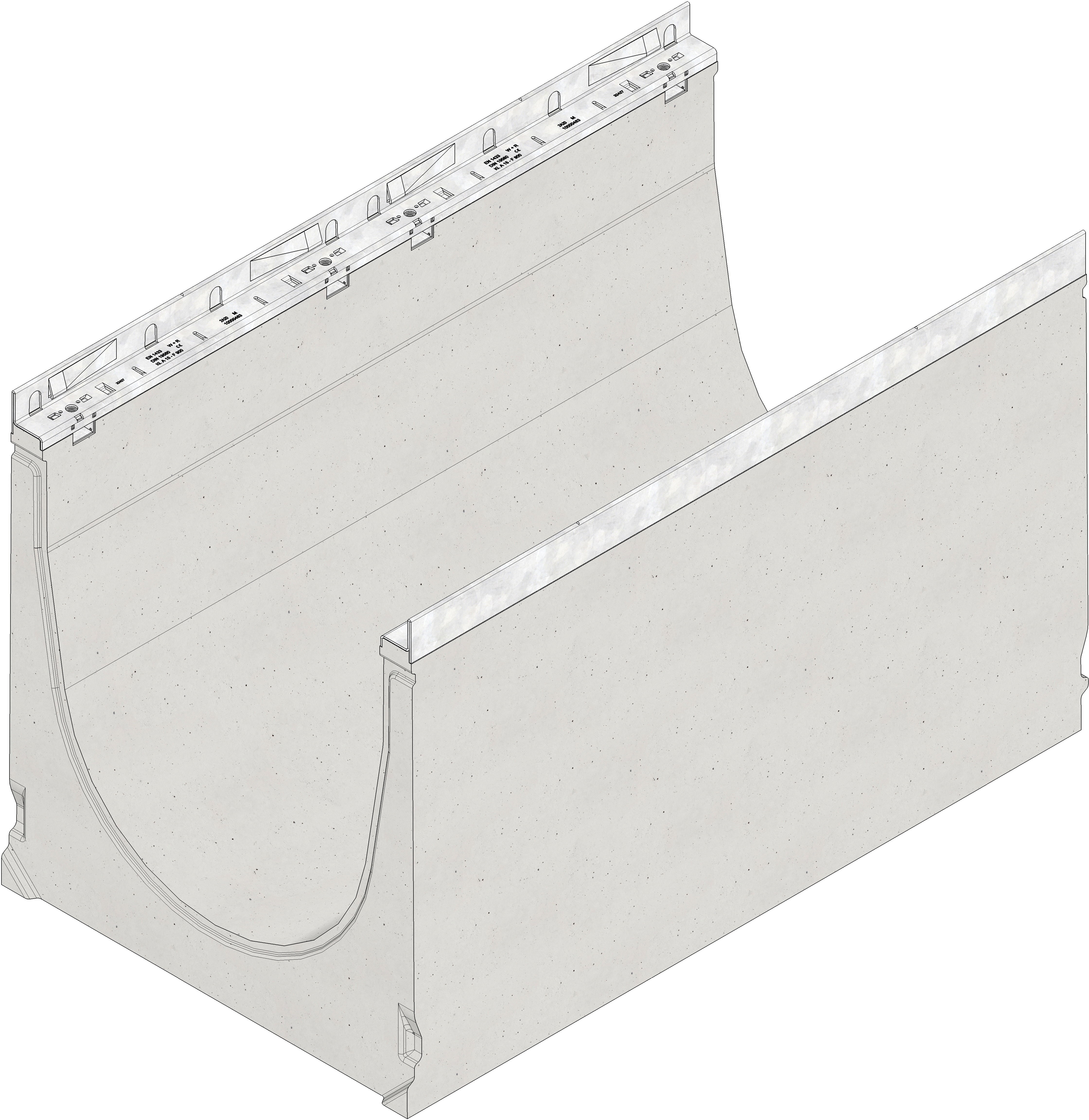

FASERFIX SUPER 500 with galvanised angle housings, up to load class F 900
Type 01, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
24121
Length
1000 mm
Width
590 mm
Height
630 mm
Weight
318.50 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
500
Internal channel cross-section
2141 cm²
Fall
-
Befestigungsart
SIDE-LOCK, Bolting
Typ nach DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regelwerke
EN 1433, DIN 19580
Vertriebstext
FASERFIX SUPER 500 channel type 01, inner shape round
Produktbeschreibung
FASERFIX SUPER 500 type 01 - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, cover insertion depth 40 mm, L/W/H 1000x590x630 mm, item no. 24121
Verpackungseinheit
2 Unit / Pallet
