Article No. 65377
Cover 30 x 30, Class A 15
Mesh cover MW 30/10 mm, stainless steel
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

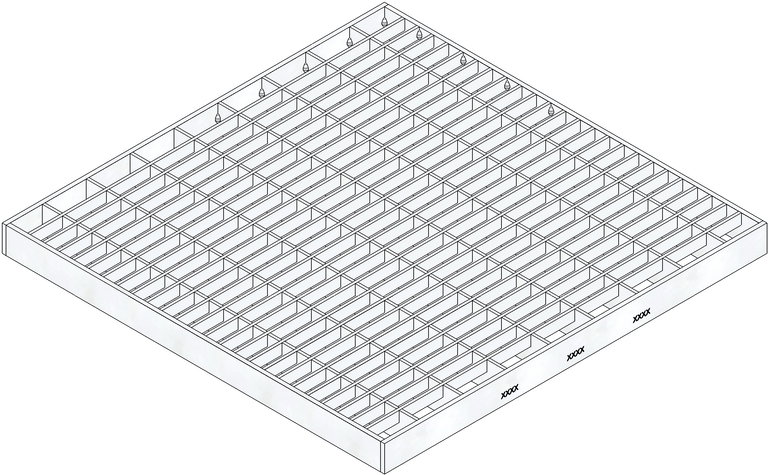

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
65377
Length
290 mm
Width
290 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
2.08 kg
Material
Stainless steel 1.4301
Intake cross-section
2257.0 cm²/m
Inlet opening
10
Material cover
Stainless steel 1.4301
Sales text
Mesh cover MS 30/10 mm, stainless steel, cl. A 15, DACHFIX STEEL Sump unit 300 / DACHFIX POINT inspection shaft 30/30
Product description
DACHFIX STEEL drain box 300 / DACHFIX POINT inspection shaft 30/30 - Mesh cover, MW 30/10 mm, stainless steel CNS 1.4301 (AISI 304), loading class A 15, optionally screwable, no interruption of the mesh pattern, length x width = 290 x 290 mm, item no. 65377
Packaging unit
300
