Article No. 13030

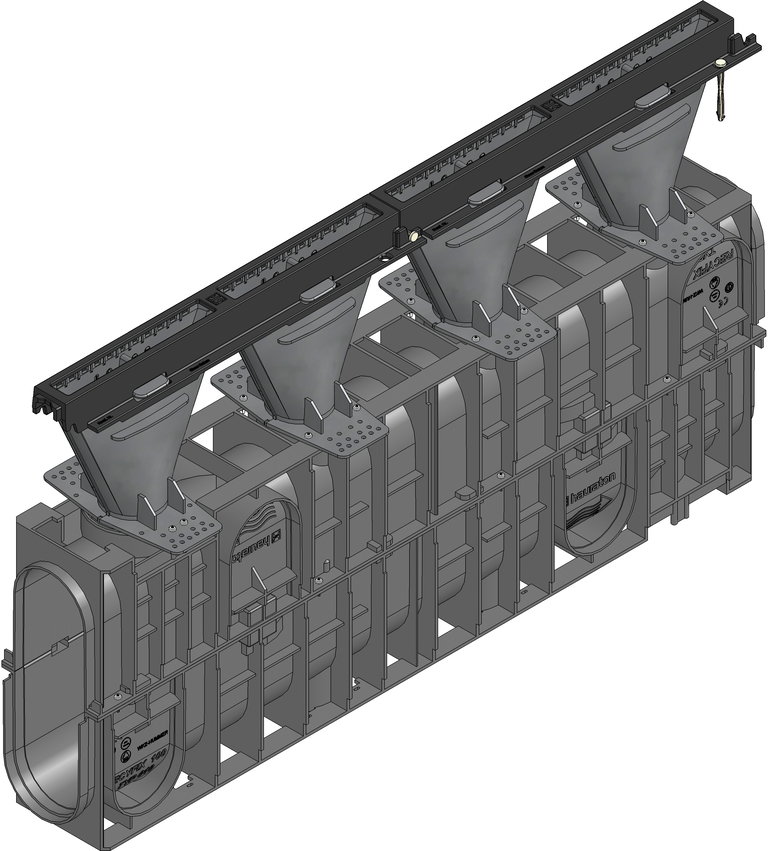

RECYFIX HICAP F 2000 up to load class F 900
Type 2200, ductile iron slot 28 mm, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
13030
Length
1000 mm
Width
147 mm
Height
565 mm
Weight
11.14 kg
Material
ABS, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide, recycled, modified Polypropylene
Height of angle housing
229 mm
Intake cross-section
247.0 cm²/m
Nominal size
2000
Internal channel cross-section
284 cm²
Fall
-
Height funnel
200 mm
Inlet opening
220
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX HICAP F 2200 with ductile iron slot 28 mm, KTL coated, cl. F 900, 1 m
Produktbeschreibung
RECYFIX HICAP F 2200 -consists of closed channel body with inlet adapter, with integrated ductile iron slot 28 mm, KTL coated, loading capacity from A 15 up to F 900, length 1000 mm, item no. 13030
Verpackungseinheit
21 Unit / Pallet
