Article No. 13410

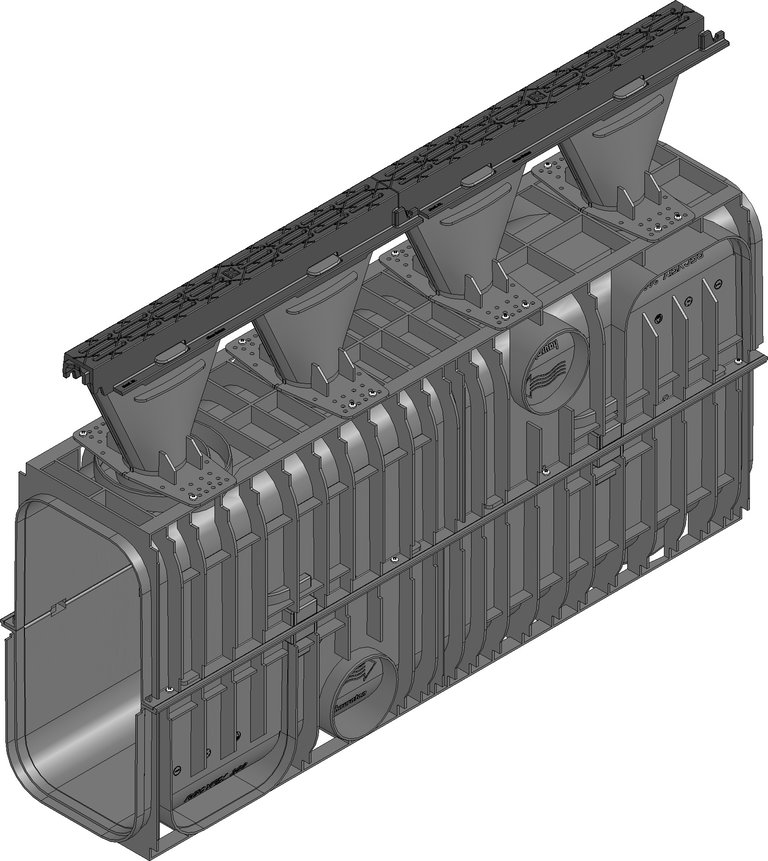

RECYFIX HICAP F 5000 up to load class D 400
Type 5200, ductile iron slot 6 mm, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
13410
Length
1000 mm
Width
256 mm
Height
665 mm
Weight
14.00 kg
Material
ABS, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide, recycled, modified Polypropylene
Height of angle housing
228 mm
Intake cross-section
129.0 cm²/m
Nominal size
5000
Internal channel cross-section
790 cm²
Fall
-
Height funnel
200 mm
Inlet opening
51
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX HICAP F 5200 with ductile iron slot 6 mm, KTL coated, cl. D 400, 1 m
Produktbeschreibung
RECYFIX HICAP F 5200 -consists of closed channel body with inlet adapter, with integrated ductile iron slot 6 mm, KTL coated, loading capacity from A 15 up to D 400, length 1000 mm, item no. 13410
Verpackungseinheit
-
