Article No. 32383
RECYFIX HICAP T 3000 up to class F 900
Type 3300 with ductile iron slotted drainage inlet, SW 17 mm, KTL-coated, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

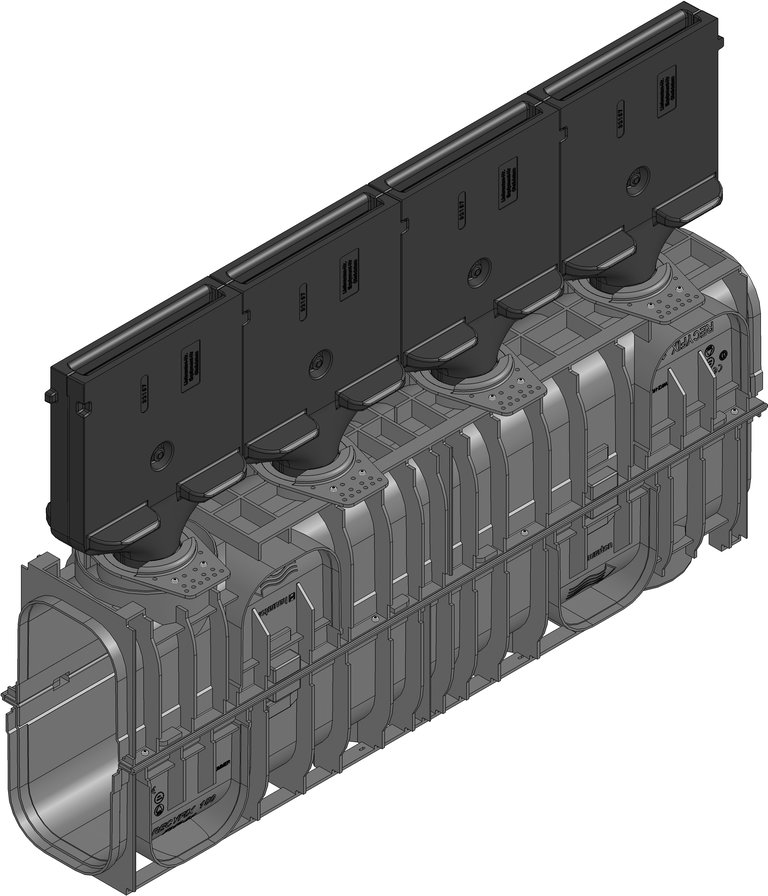

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32383
Length
1000 mm
Width
210 mm
Height
680 mm
Weight
41.77 kg
Height of angle housing
328 mm
Intake cross-section
154.0 cm²/m
Nominal size
3000
Internal channel cross-section
460 cm²
Fall
-
Height funnel
300 mm
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP T 3300 Drainage/ Retention channel type OPA/BZE with 30 cm high ductile iron slotted drainage inlet, KTL-coated, cl. F 900, 1 m
Product description
Drainage/ Retention channel RECYFIX®HICAP T 3300 channel made of modified PP, with 30 cm high solid cast iron slotted covers made of spheroidal ductile iron EN-GJS 500-7 (GGG-50) hydraulically optimized upper edge of the slotted covers, SW 17 mm, KTL coated, loading capacity F 900 according to DIN 19580/EN 1433, drainage cross-section 460 cm² and a retention volume of 46,0 l/m, L/W/H 1000x210x680 mm, item no. 32383
Packaging unit
-
Declaration of Performance
Tender Texts
Installation example
Asphalt class E 600, Sump unit
Concrete class E 600, Sump unit
Concrete class F 900, Sump unit
