Article No. 48746
RECYFIX NC 100, class D 400
Type 01 with ductile iron cover, SW 104/10 mm, black, 4-times bolted, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

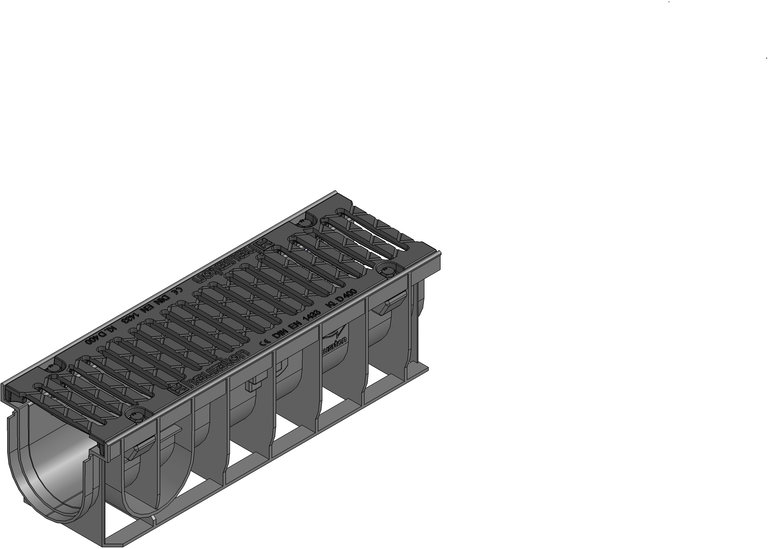

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
48746
Length
500 mm
Width
160 mm
Height
150 mm
Einlegetiefe
20 mm
Weight
5.43 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
426.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Vertriebstext
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Vertriebstext
EN 1433, DIN 19580
Vertriebstext
RECYFIX NC 100 type 01 with ductile iron cover, SW 104/10 mm, black, cl. D 400
Vertriebstext
RECYFIX NC 100 type 01 - channel made of modified PP, with integrated angle housing, with ductile iron cover made of spheroidal ductile iron GJS 500-7, SW 104/10 mm, black, with horizontal thrusts, with forfould locking, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 500x160x150 mm, item no. 48746
Vertriebstext
98
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class D 400 - E 600
Concrete class D 400 - E 600
Pavement class D 400 - E 600
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Asphalt class C 250 - D 400
Concrete class E 600
Installation instructions
