Article No. 48770

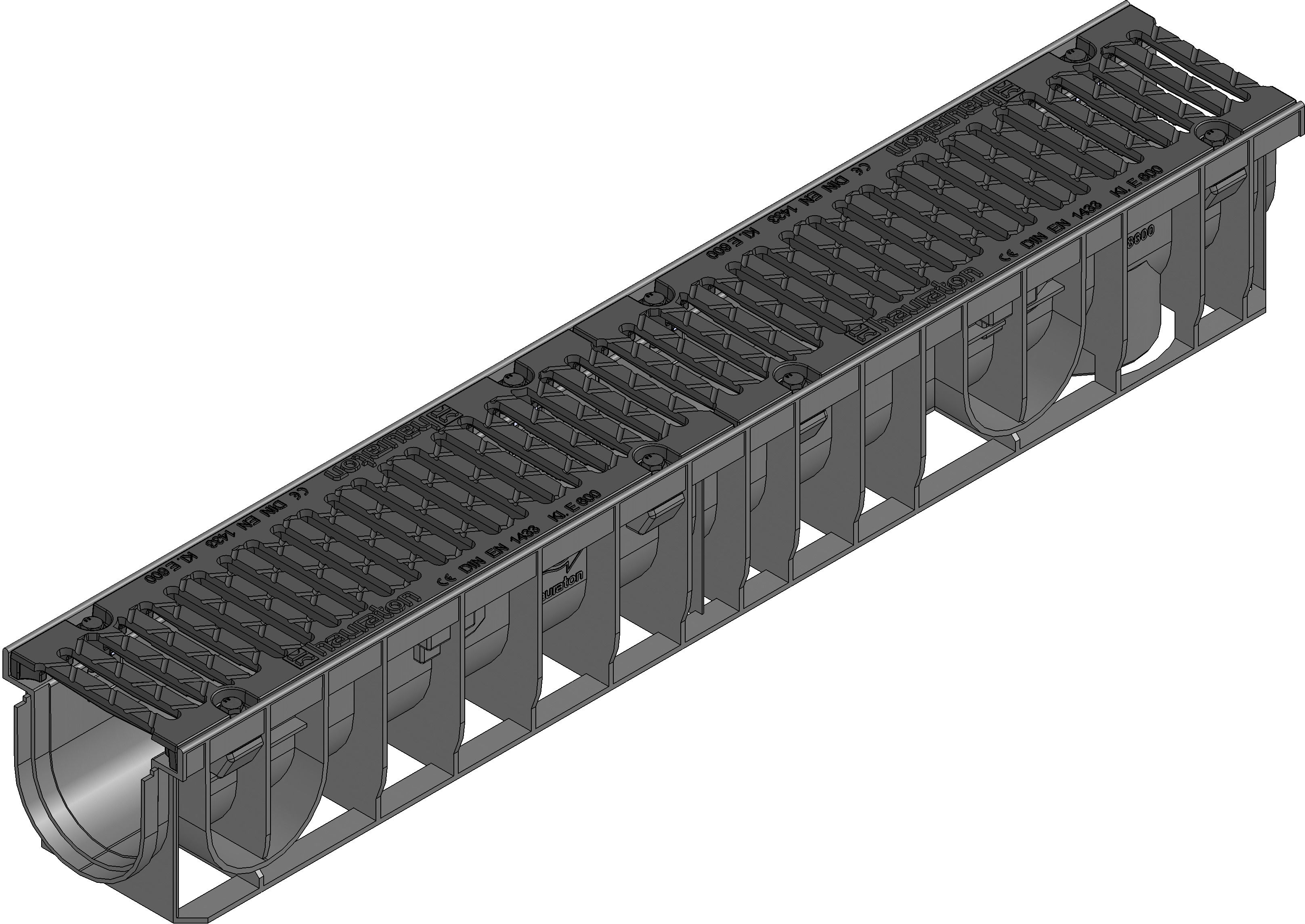

RECYFIX NC 100, class E 600
Type 01 with ductile iron cover, SW 104/10 mm, black, 8-fold bolted, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
48770
Length
1000 mm
Width
160 mm
Height
150 mm
Einlegetiefe
20 mm
Weight
10.70 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
426.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX NC 100 type 01 with ductile iron cover, SW 104/10 mm, black, cl. E 600
Produktbeschreibung
RECYFIX NC 100 type 01 - channel made of modified PP with integrated angle housing, according EN 1433, with vertical connection possibility DN/OD 110, with ductile iron cover made of of ductile graphite iron EN-GJS, SW 104/10 mm, black, with horizontal thrust resistance and eightfold locking, loading capacity from A 15 - E 600, L/W/H 1000 x 160 x 150 mm, item no. 48770
Verpackungseinheit
49 Unit / Pallet
