Article No. 48772
RECYFIX NC 100, class E 600
Type 010 with ductile iron cover, SW 104/10 mm, black, 8-fold bolted, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

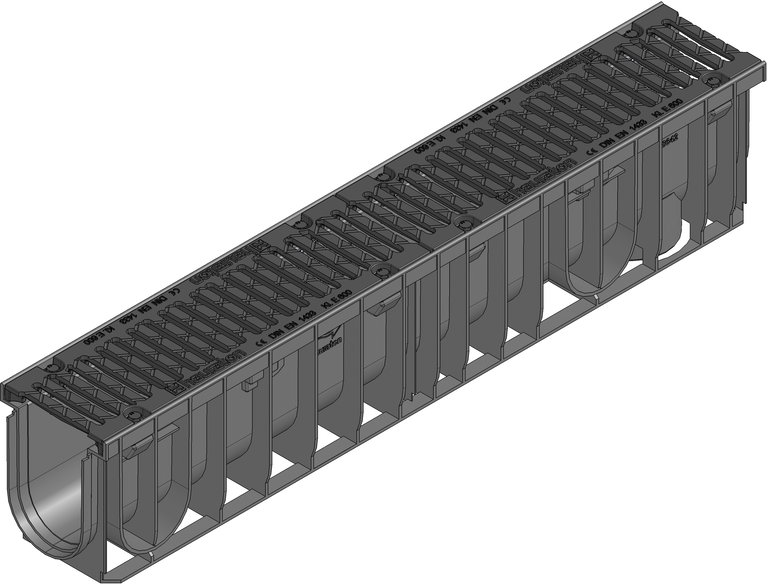

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
48772
Length
1000 mm
Width
160 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
11.92 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
426.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 100 Channel type 010 with ductile iron cover SW 104/10 mm, black, cl. E 600, 1 m
Product description
RECYFIX NC 100 type 010 - channel made of modified PP with integrated angle housing, according EN 1433, with vertical connection possibility DN/OD 110, with ductile iron cover made of of ductile graphite iron EN-GJS, SW 104/10 mm, black, with horizontal thrust resistance, eightfold locking, loading capacity from A 15 - E 600, L/W/H 1000 x 160 x 200 mm, item no. 48772
Packaging unit
35
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class D 400 - E 600,
Concrete class D 400 - E 600,
Pavement class D 400 - E 600,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class E 600,
Installation instructions
