Article No. 49573

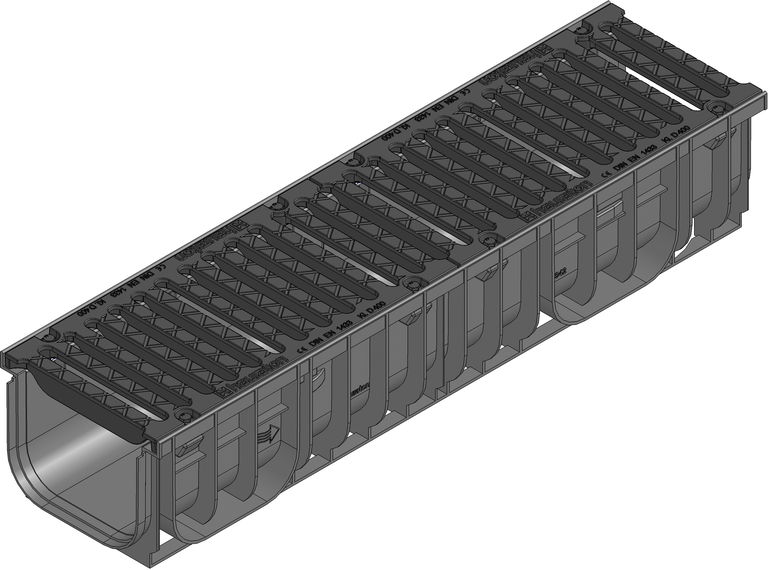

RECYFIX NC 200, class D 400
Type 010 with ductile iron cover SW 204/18 mm, black, 8-fold bolted, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
49573
Length
1000 mm
Width
262 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
20.75 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
936.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX NC 200 type 010 with ductile iron cover, SW 204/18 mm, black, class D 400
Produktbeschreibung
RECYFIX NC 200 type 010 - channel made of modified PP with integrated angle housing, with vertical connection possibility DN/OD 110/160, with ductile iron cover made of spheroidal ductile iron EN-GJS, SW 204/18 mm, black, with horizontal thrust resistance, eightfold locking, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x262x200mm, item no. 49573
Verpackungseinheit
20 Unit / Pallet
