Article No. 49547
RECYFIX NC 200, class E 600
Type 010 with ductile iron cover, SW 204/18 mm, black, 4-fold bolted, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

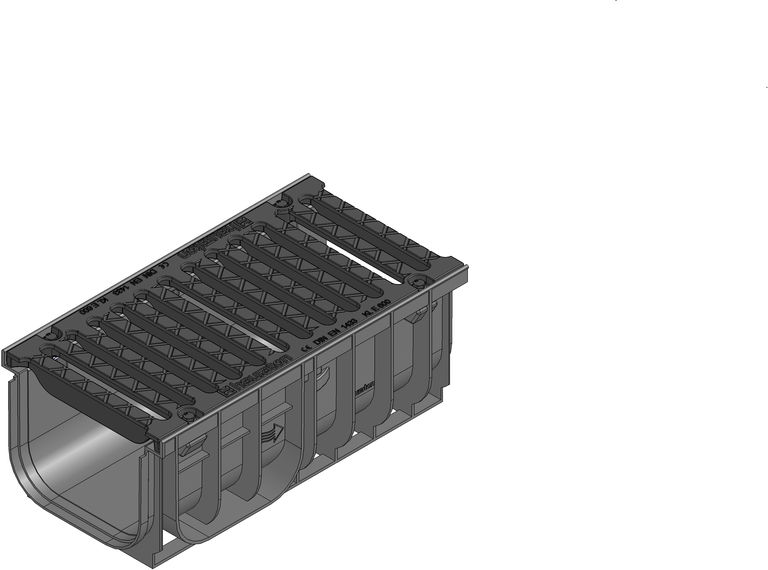

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
49547
Length
500 mm
Width
262 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
10.38 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
936.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX NC 200 Channel type 010 with ductile iron cover SW 204/18 mm, black, cl. E 600, 0.5 m
Product description
RECYFIX NC 200 Type 010 - channel made of modified PP with integrated angle housing according EN 1433, with ductile iron cover made of spheroidal ductile iron GJS 500-7, SW 204/18 mm, black, with horizontal thrust resistance and fourfold locking, loading capacity from A 15 - E 600, L/W/H 500x262x200 mm, item no. 49547
Packaging unit
40
Declaration of Performance
Tender Texts
Installation instructions
Installation example
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class D 400 - E 600,
Concrete class D 400 - E 600,
Pavement class D 400 - E 600,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class E 600,
