Article No. 32184
RECYFIX POINT 30/30, Point drainage, class B 125
Construction height 300 mm with ductile iron cover, star design SW 12 mm, black
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

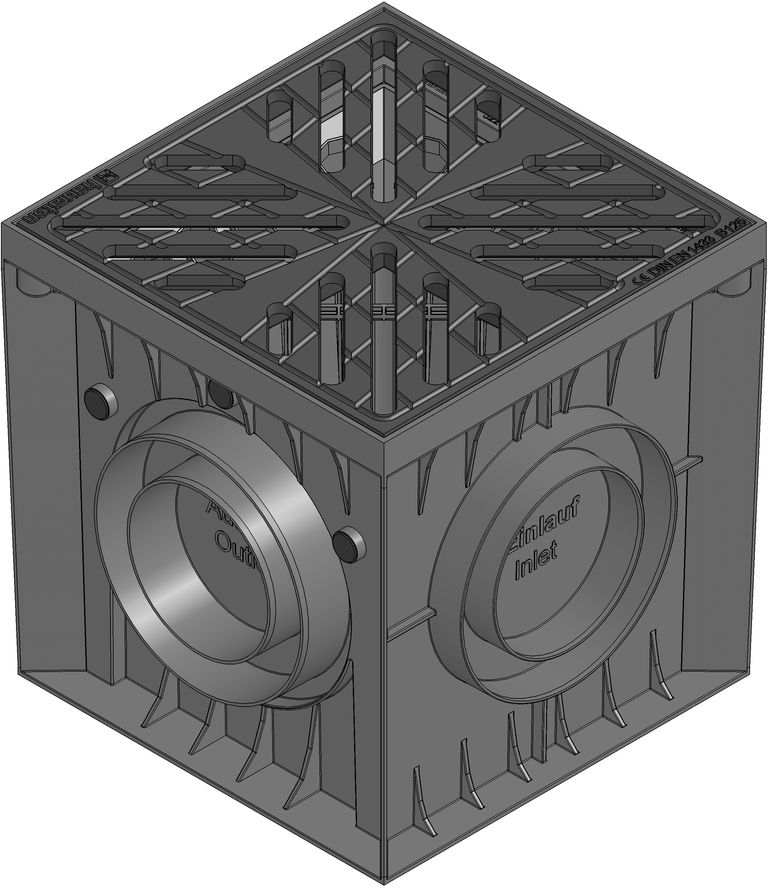

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32184
Length
291 mm
Width
291 mm
Height
300 mm
Weight
6.97 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene
Nominal size
-
Inlet opening
0
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433
Vertriebstext
RECYFIX POINT 30/30, construction height 300 mm, with ductile iron cover star design SW 12 mm, black, cl. B 125, with silt bucket and foul air trap
Produktbeschreibung
RECYFIX POINT 30/30 - installation height 300 mm, made of modified PP, with ductile iron cover made of spheroidal ductile iron GJS 500-7, star design, SW 12 mm, black, with foul air trap and silt bucket, with connection piece for PVC-U pipe outlet DN/OD 110/160, loading capacity A 15 - B 125, L/W/H 291x291x300 mm, item no. 32184
Verpackungseinheit
36 Unit / Pallet
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class A 15
water-bound road surfaces class A 15
Pavement class A 15 - B 125
Pavement class A 15 - B 125
Asphalt class A 15 - C 250
Concrete class B 125 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Pavement class C 250
Pavement class A 15 - C 250
Asphalt class A 15 - C 250
Concrete class B 125 - C 250
Pavement class C 250
Installation instructions
