Article No. 47034
RECYFIX PRO 100, class B 125
Type 01 with mesh cover MW 30/10 mm, galvanised, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Top view

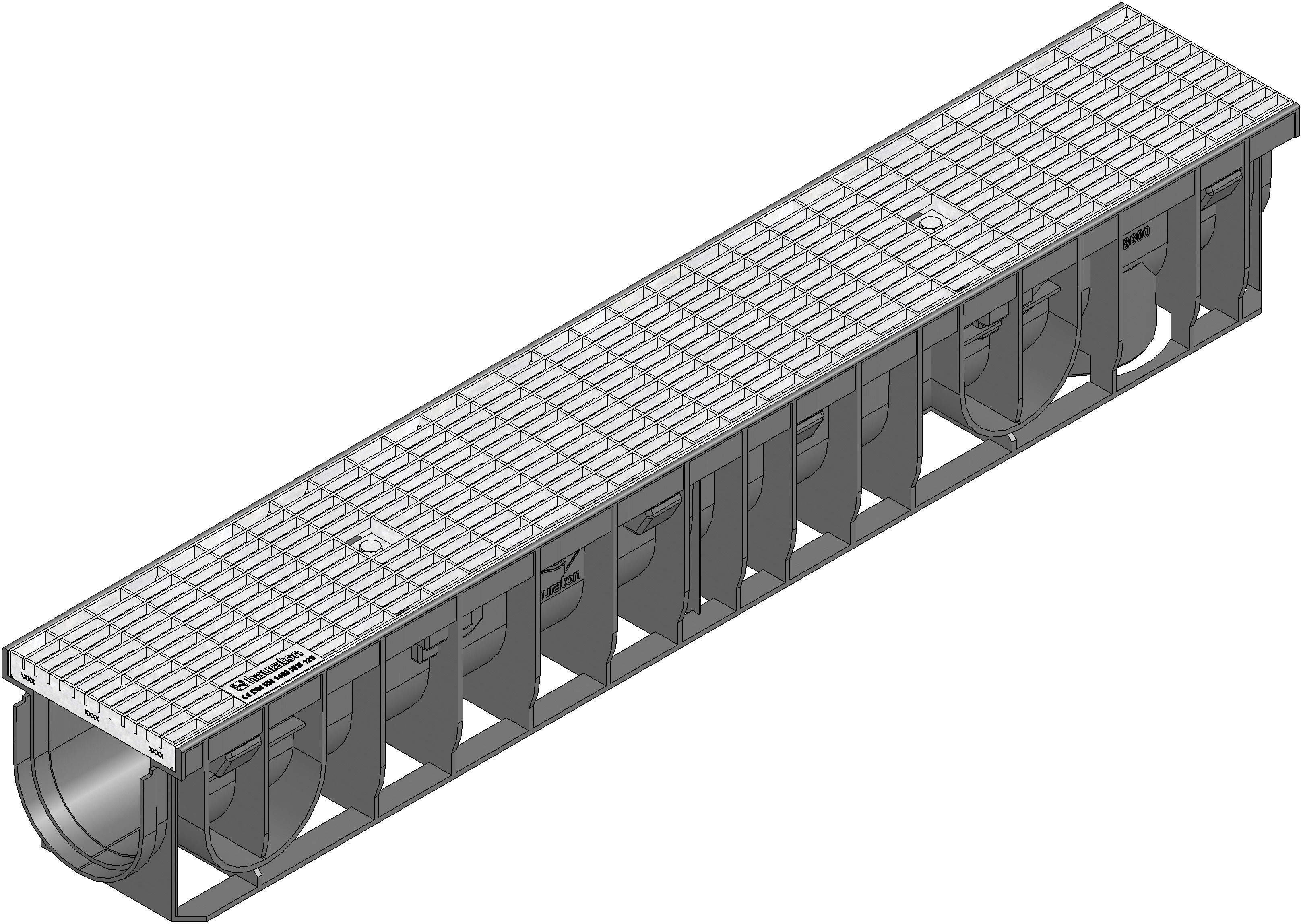

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
47034
Length
1000 mm
Width
160 mm
Height
150 mm
Einlegetiefe
20 mm
Weight
6.05 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
1099.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
hot-dip galvanised steel
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX PRO 100 Channel type 01 with mesh cover, MW 30/10, galvanised, cl. B 125, length 1 m, locked
Produktbeschreibung
RECYFIX PRO 100 type 01 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110, with mesh cover, galvanised, mesh width 30/10, with locking device, loading capacity from A 15 - B 125 according to EN 1433, L/W/H 1000x160x150 mm, item no. 47034
Verpackungseinheit
49 Unit / Pallet
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
