Article No. 47033
RECYFIX PRO 100, class B 125
Type 95 with GUGI-Cover made of PA-GF, MW 15/25 mm, black, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
47033
Length
1000 mm
Width
160 mm
Height
95 mm
Einlegetiefe
20 mm
Weight
3.60 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regelwerke
EN 1433, DIN 51130, DIN 19580, EN 16165
Vertriebstext
RECYFIX PRO 100 Channel type 95 with GUGI-Cover made of PA-GF, MW 15/25, black, cl. B 125, length 1 m, locked
Produktbeschreibung

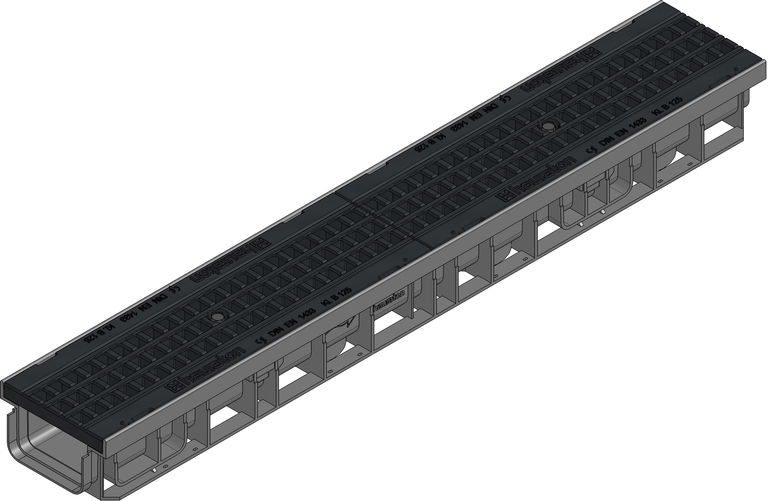

RECYFIX PRO 100 type 95 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 75, with GUGI-mesh cover, mesh width 15/25, with horizontal thrust resistance and locking device, black, loading capacity from A 15 -B 125 according to EN 1433, L/W/H 1000x160x95 mm, item no. 47033
Verpackungseinheit
77 Unit / Pallet
