Article No. 48646
RECYFIX PRO 100, class C 250
Type 010 with ductile longitudinal cover SW 9 mm, KTL-coated, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

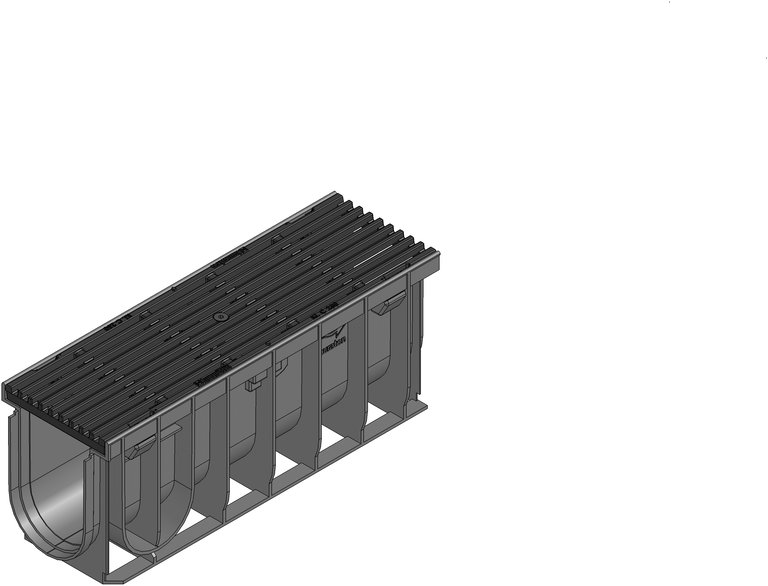

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
48646
Length
500 mm
Width
160 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
5.55 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
577.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 010 with integrated edge frames, with longitudinal ductile iron cover bar distance 9 mm, KTL-coated, cl. C 250, locked, 0.5 m
Product description
RECYFIX PRO 100 type 010 - channel made of modified PP, with integrated angle housing, with longitudinal cover ductile iron cover made of spheroidal ductile iron GJS 500-7, bar distance 9 mm, KTL-coated, locked, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 500x160x200 mm, item no. 48646
Packaging unit
70
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250, Flat channel
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
