Article No. 47412
RECYFIX PRO 100, class C 250
Type 010 with FIBRETEC design slotted cover SW 110/9 mm, in the colour Stone, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
47412
Length
1000 mm
Width
160 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
4.89 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX PRO 100 Type 010 with FIBRETEC design slotted cover, in the colour Stone, SW 9 mm, cl. C 250, 1 m
Produktbeschreibung

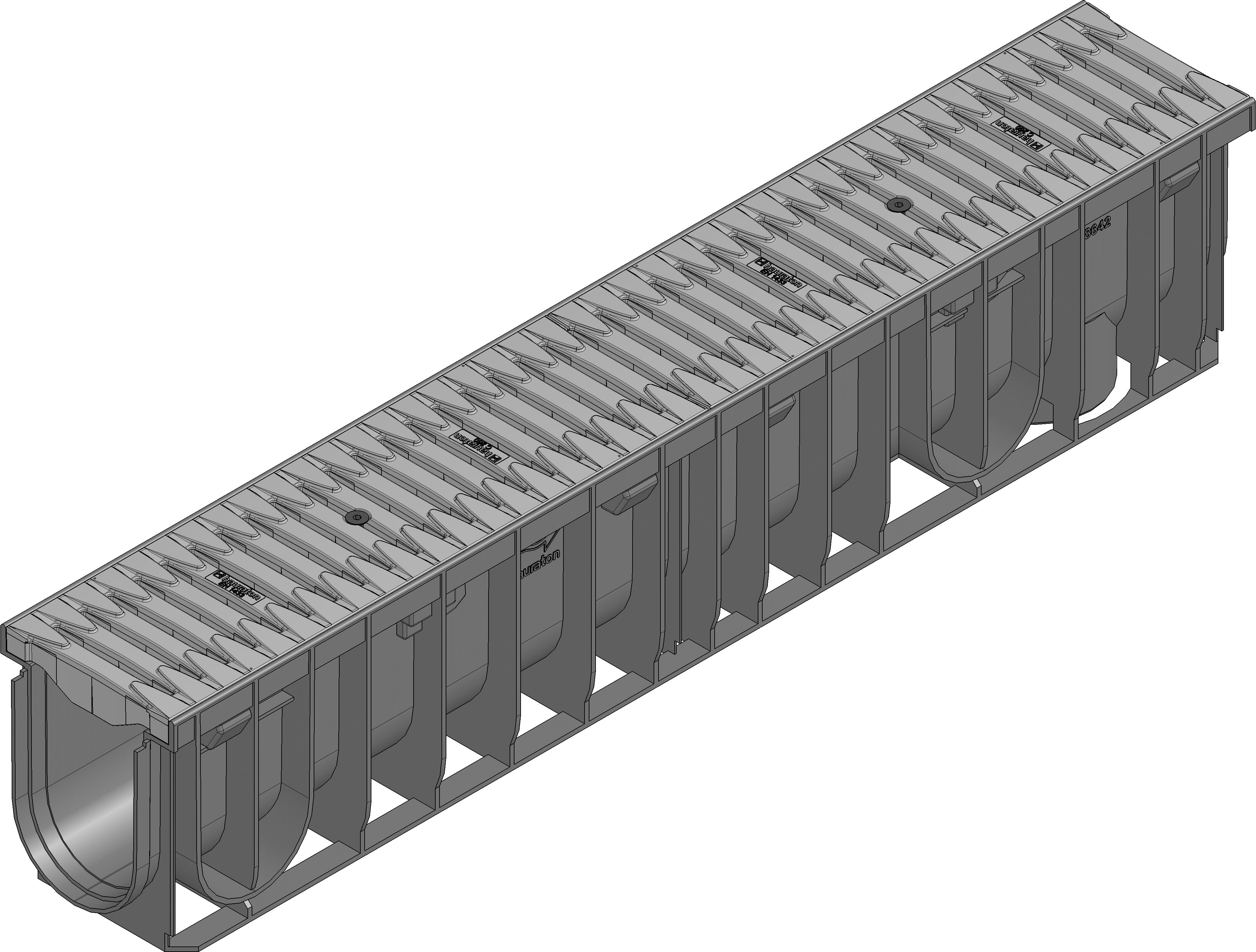

RECYFIX PRO 100 type 010 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110, with FIBRETEC design slotted cover in the colour stone, slot width 9 mm, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x160x200 mm, item no. 47412
Verpackungseinheit
35 Unit / Pallet
