Article No. 47062
RECYFIX PRO 100, class C 250
Type 75 with FIBRETEC design slotted cover, SW 110/9 mm, in the colour black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

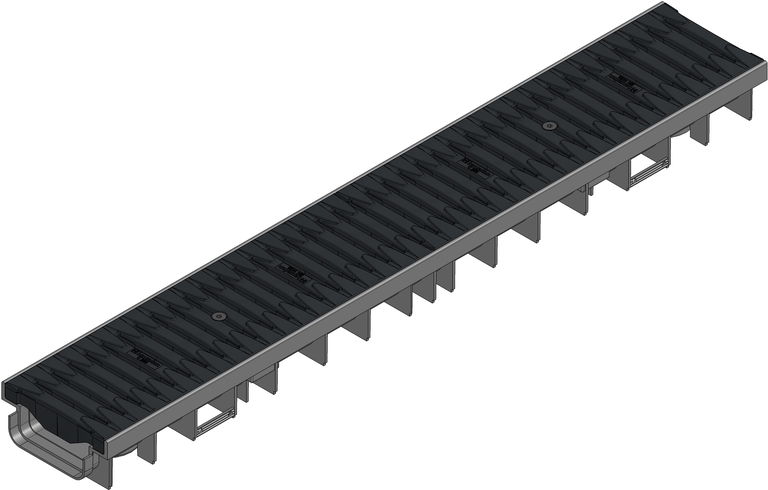

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47062
Length
1000 mm
Width
160 mm
Height
75 mm
Einlegetiefe
20 mm
Weight
3.45 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX PRO 100 Channel type 75 with integrated edge frames, with FIBRETEC Design slotted cover SW 110/9 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PRO 100 cype 75 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 75, with FIBRETEC design slotted cover, slot width 9 mm, black, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x160x75, item no. 47062
Packaging unit
84
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250, Flat channel
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
