Article No. 47068

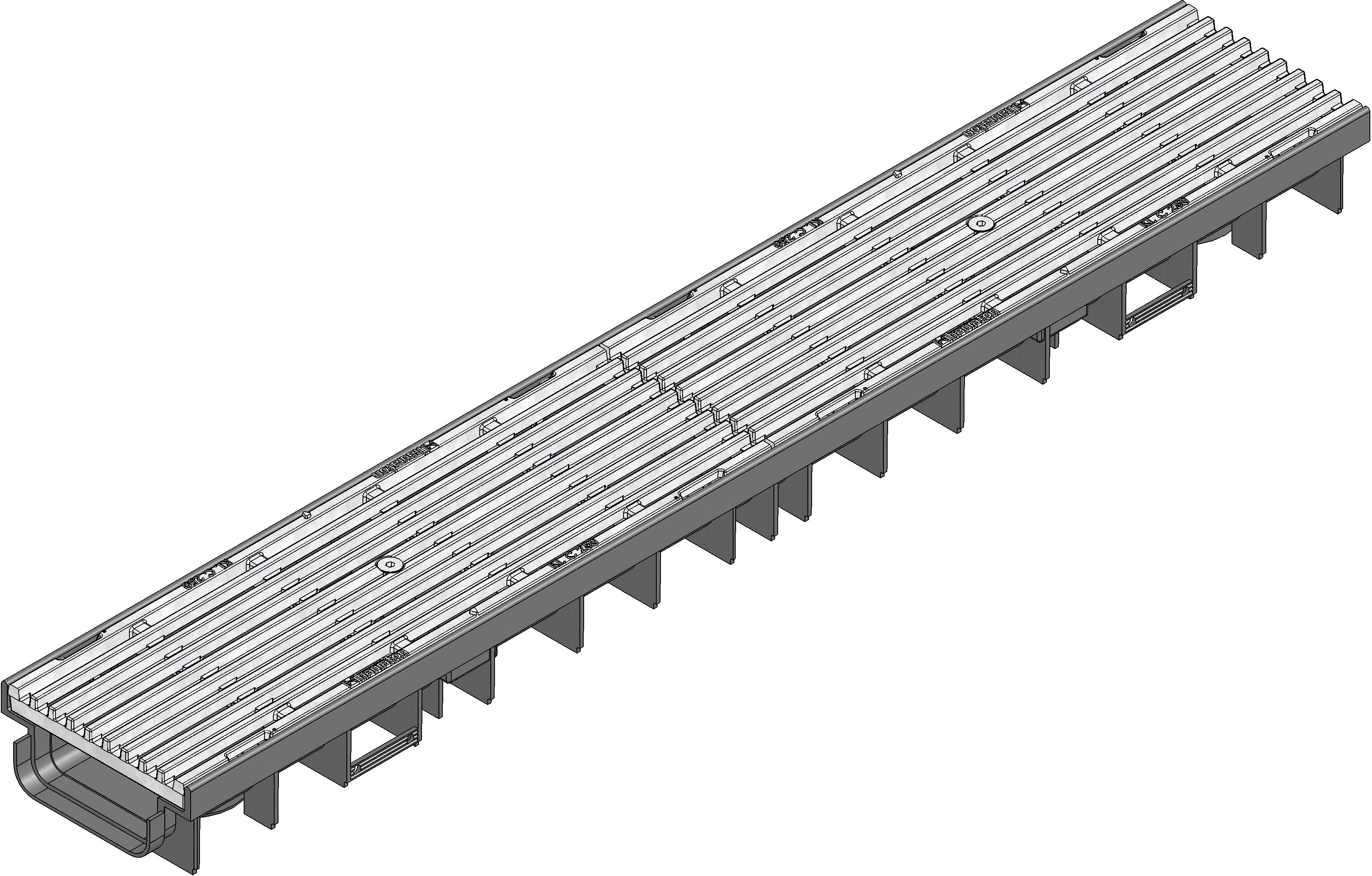

RECYFIX PRO 100, class C 250
Type 75 with longitudinal ductile iron cover SW 9 mm, galvanised, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
47068
Length
1000 mm
Width
160 mm
Height
75 mm
Einlegetiefe
20 mm
Weight
8.53 kg
Material
Ductile iron GJS 500-7 galvanised, Galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
528.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 galvanised
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX PRO 100 Channel type 75 with longitudinal ductile iron cover, bar distance 9 mm, galvanised, cl. C 250, length 1 m, locked
Produktbeschreibung
RECYFIX PRO 100 type 75 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 75, with longitudinal ductile iron cover made of spheroidal ductile iron GJS 500-7, bar distance 9 mm, galvanised, locked, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x160x75 mm, item no. 47068
Verpackungseinheit
84 Unit / Pallet
