Article No. 47133

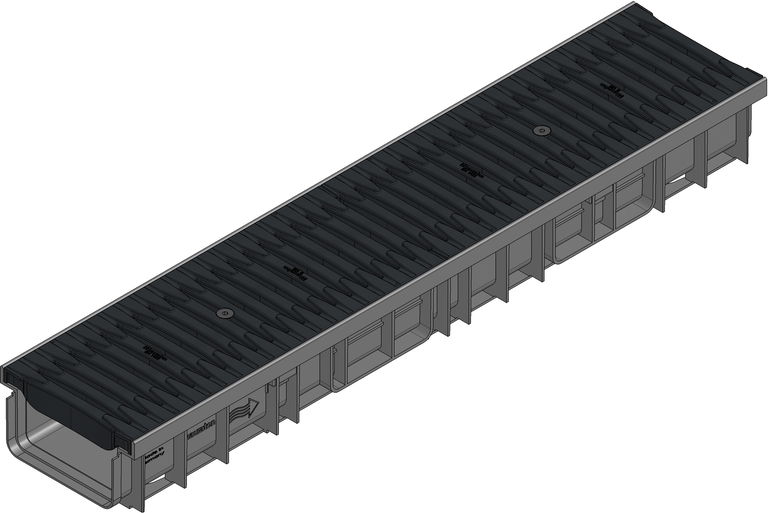

RECYFIX PRO 150, class B 125
Type 115 with FIBRETEC design slotted cover, SW 150/9 mm, in the colour black, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
47133
Length
1000 mm
Width
212 mm
Height
115 mm
Einlegetiefe
20 mm
Weight
6.12 kg
Material
recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
500.0 cm²/m
Nominal size
150
Internal channel cross-section
116 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regelwerke
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Vertriebstext
RECYFIX PRO 150 Channel type 115 with FIBRETEC design slotted cover SW 150/9 mm, black, cl. B 125, locked, 1 m
Produktbeschreibung
RECYFIX PRO 150 type 115 - Channel made of recycled PP, with integrated angle housing, with vertical connection possibility DN/OD 75/110, with FIBRETEC design slotted cover slot width 150/9 mm, black, made of fibre-refinforced polyamid, with horizontal thrust resistance and locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x212x115 mm, item no. 47133
Verpackungseinheit
45 Unit / Pallet
