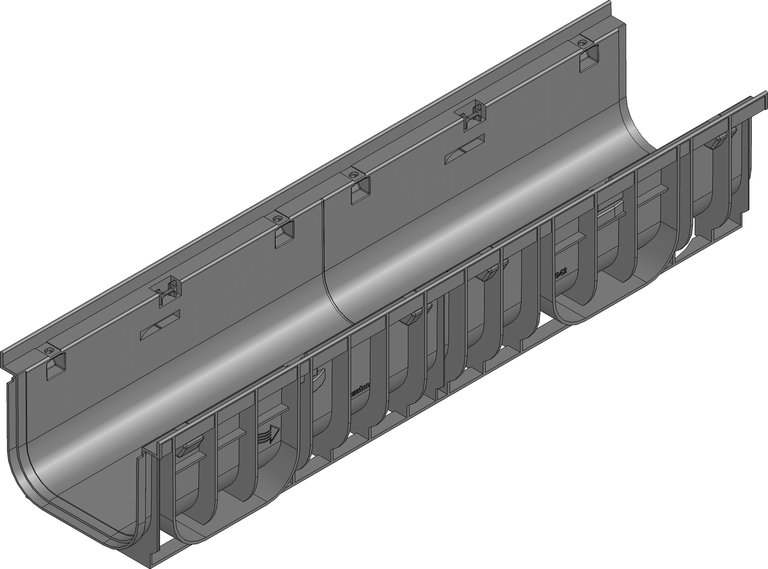

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
48942
Length
1000 mm
Width
262 mm
Height
200 mm
Weight
3.17 kg
Material
recycled, modified Polypropylene
Height of angle housing
20 mm
Nominal size
200
Internal channel cross-section
294 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 200 Channel body type 010 with integrated edge frames, 1 m
Product description
RECYFIX PRO 200 type 010 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110/160, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x262x200 mm, item no. 48942
Packaging unit
32
Tender Texts
Installation example
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Installation instructions
