Article No. 41246

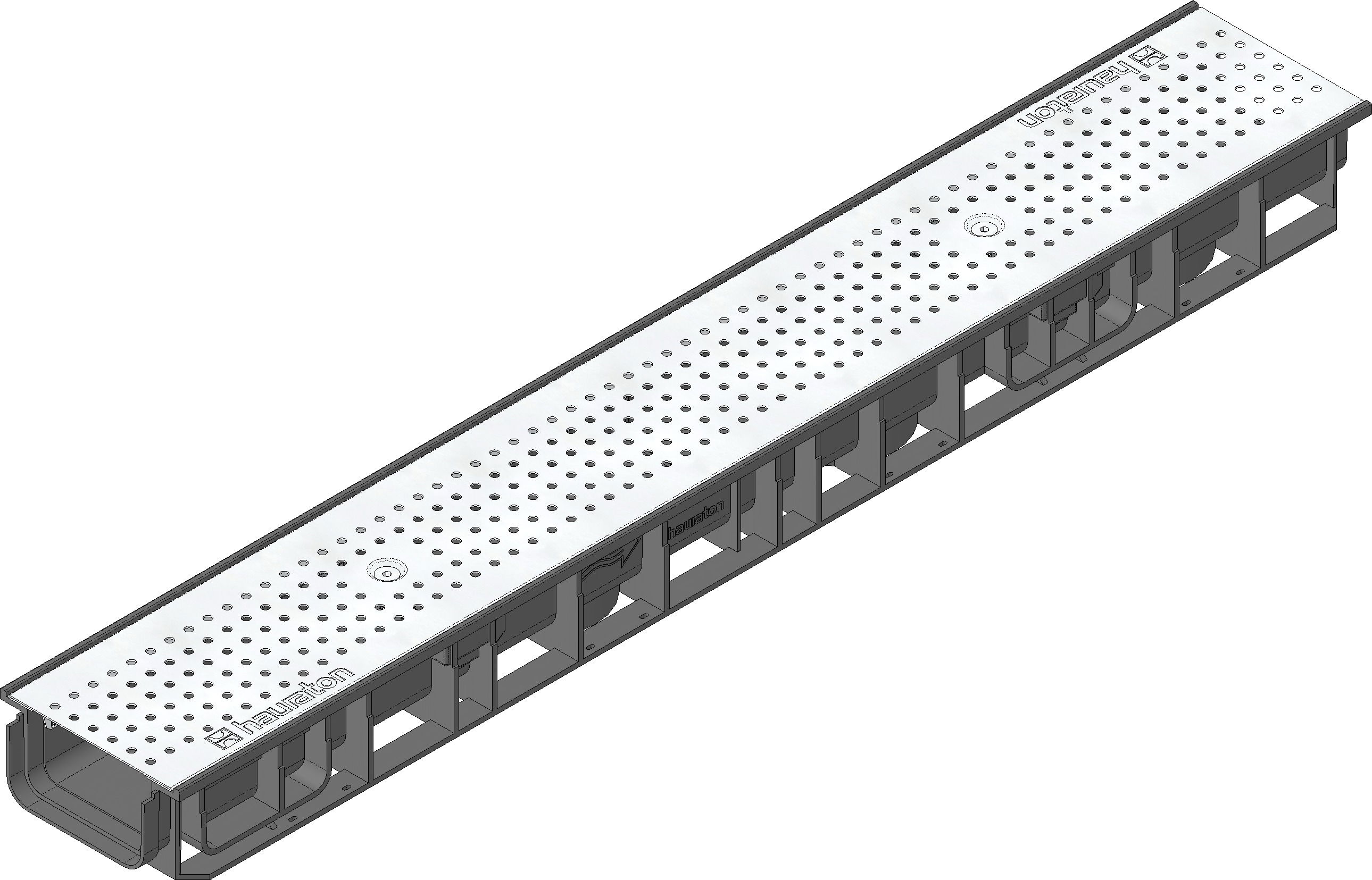

RECYFIX STANDARD 100, class A 15
Type 80 with perforated cover "Elegance", stainless steel, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
41246
Length
1000 mm
Width
150 mm
Height
80 mm
Einlegetiefe
3 mm
Weight
3.10 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Stainless steel 1.4301
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX STANDARD 100 channel type 80 with perforated cover ""Elegance"", stainless steel, cl. A 15, locked
Produktbeschreibung
RECYFIX STANDARD 100 type 80 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75, with perforated cover, stainless steel CNS 1.4301 (AISI 304), Ø 6 mm, with locking device, loading capacity A 15, L/W/H 1000x146x80 mm, item no. 41246
Verpackungseinheit
88 Unit / Pallet
