Article No. 41210

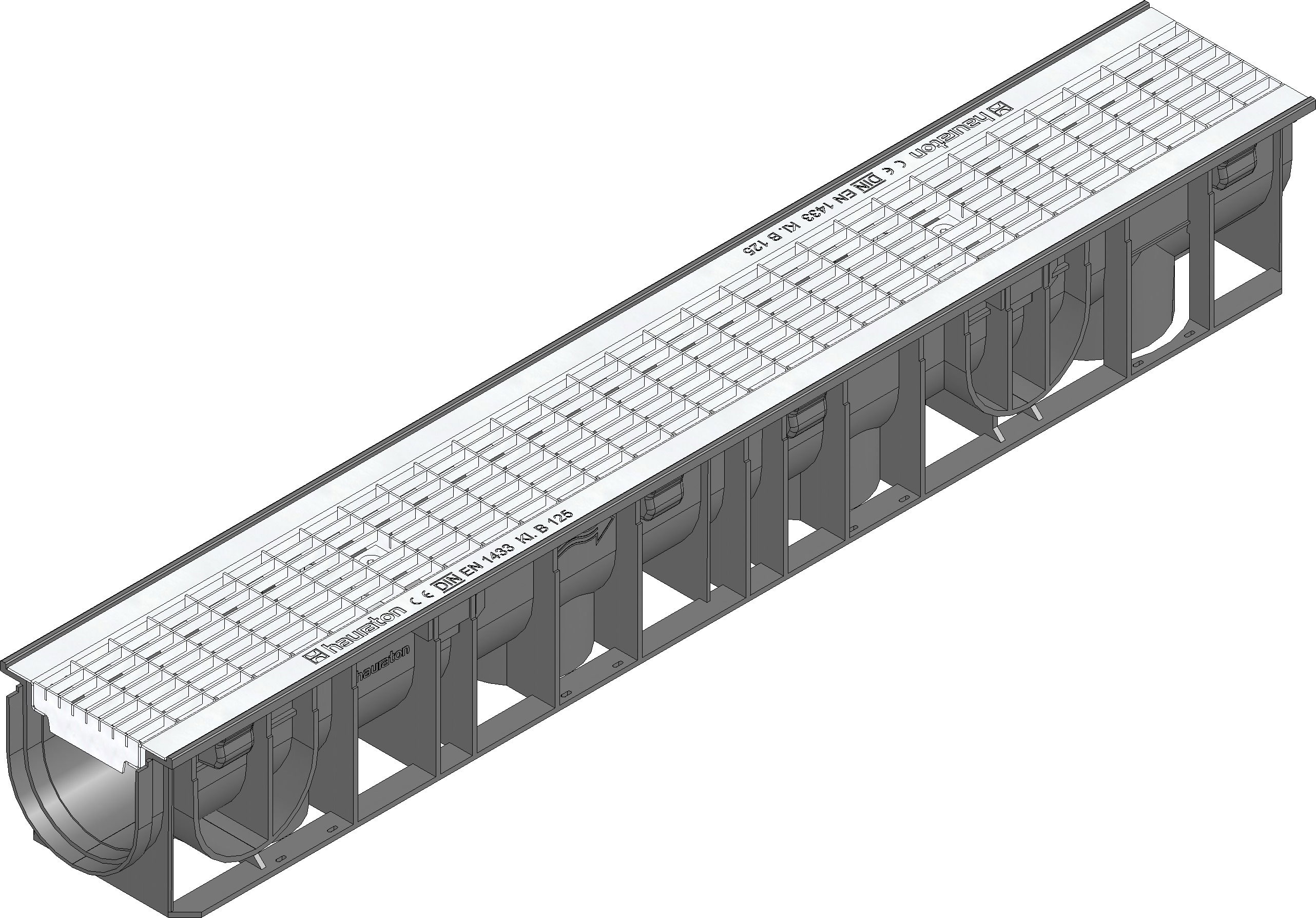

RECYFIX STANDARD 100, class B 125
Type 01 with mesh cover MW 30/10 mm, stainless steel, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
41210
Length
1000 mm
Width
150 mm
Height
134 mm
Einlegetiefe
2 mm
Weight
5.20 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
735.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Stainless steel 1.4301
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX STANDARD 100 channel type 01 with mesh cover MW 30/10, stainless steel, cl. B 125, with locking device, 1 m
Produktbeschreibung
RECYFIX STANDARD 100 type 01 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with mesh cover, stainless steel CNS 1.4301 (AISI 304), mesh width 30/10, with locking device, trafficable, L/W/H 1000x150x134 mm, item no. 41210
Verpackungseinheit
49 Unit / Pallet
