Article No. 41222

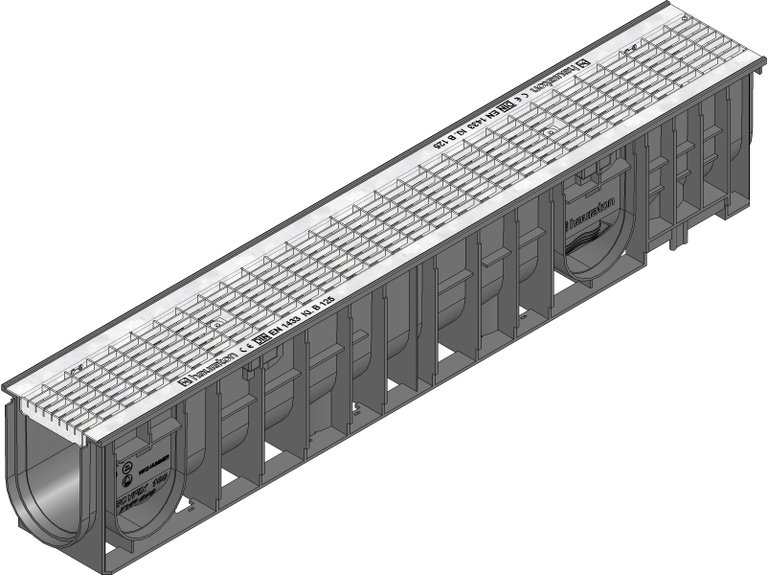

RECYFIX STANDARD 100, class B 125
Type 010 with mesh cover MW 30/10 mm, galvanised, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
41222
Length
1000 mm
Width
150 mm
Height
185 mm
Einlegetiefe
2 mm
Weight
5.68 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
735.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
hot-dip galvanised steel
Regelwerke
EN 1433, AS 4586, DIN 19580
Vertriebstext
RECYFIX STANDARD 100 channel type 010 with mesh cover MW 30/10, galvanised, cl. B125, 1 m
Produktbeschreibung
RECYFIX STANDARD 100 type 010 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with mesh cover, mesh width 30/10, galvanised, with locking device, loading capacity from A 15 - B 125, L/W/H 1000x150x185 mm, item no. 41220
Verpackungseinheit
42 Unit / Pallet
