Article No. 41230
RECYFIX STANDARD 100, class C 250
Type 01 with ductile iron cover, SW 80/6 mm, black, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
41230
Length
1000 mm
Width
150 mm
Height
134 mm
Einlegetiefe
6 mm
Weight
8.34 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
254.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Vertriebstext

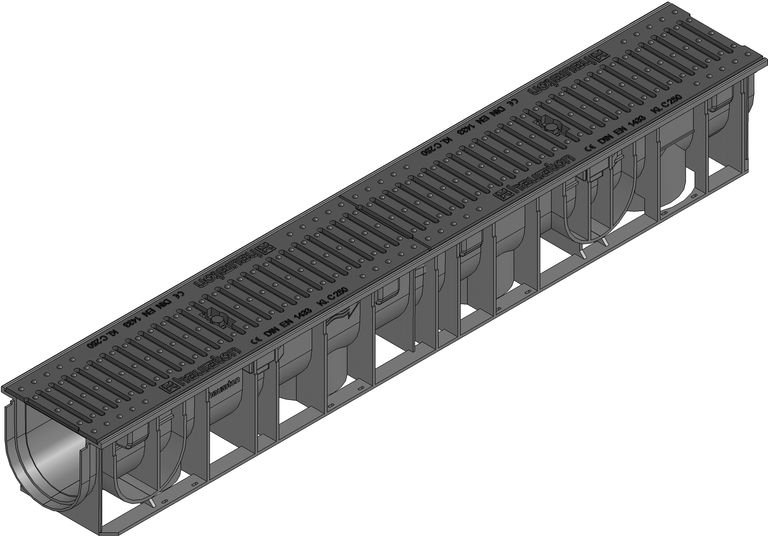

RECYFIX STANDARD 100 channel type 01 with ductile iron cover, SW 6 mm, cl. C 250, with locking device, 1 m
Produktbeschreibung
RECYFIX STANDARD 100 type 01 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with ductile iron cover made of spheroidal ductile iron GJS 500-7, slot width 6 mm, black, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250, L/W/H 1000x150x134 mm, item no. 41230
Verpackungseinheit
49 Unit / Pallet
