Article No. 40238
RECYFIX STANDARD 100, class C 250
Type 60 with ductile iron cover SW 80/14 mm, black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Top view

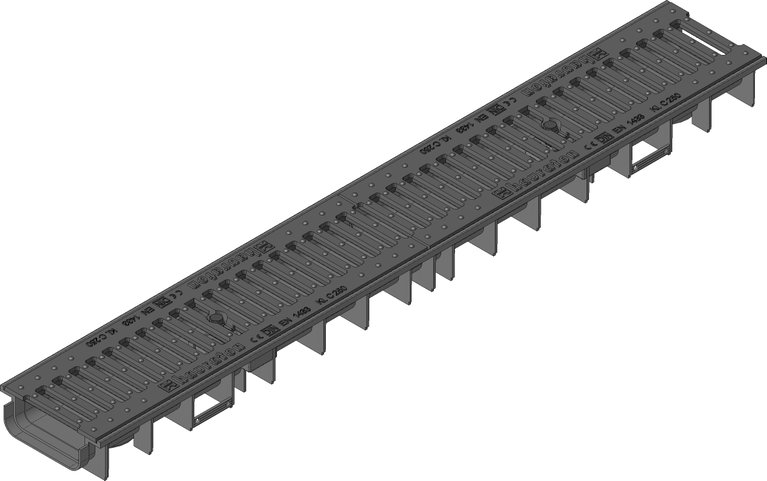

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40238
Length
1000 mm
Width
150 mm
Height
60 mm
Einlegetiefe
6 mm
Weight
7.24 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
432.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, DIN 51130, DIN 19580, EN 16165
Vertriebstext
RECYFIX STANDARD 100 Channel Type 60 with ductile iron cover SW 14 mm, black, cl.C 250 with locking device
Produktbeschreibung
RECYFIX STANDARD 100 type 60 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75, with ductile iron cover made of spheroidal ductile iron GJS 500-7, slot width 14 mm, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 1000x146x60 mm, item no. 40238
Verpackungseinheit
88 Unit / Pallet
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
