Article No. 40248
RECYFIX STANDARD 100, class C 250
Type 80 with ductile iron cover SW 80/14 mm, black, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
40248
Length
1000 mm
Width
150 mm
Height
80 mm
Einlegetiefe
6 mm
Weight
7.69 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
432.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, DIN 51130, DIN 19580, EN 16165
Vertriebstext
RECYFIX STANDARD 100 channel type 80 with ductile iron cover, SW 14 mm, black, class C 250 with locking device
Produktbeschreibung

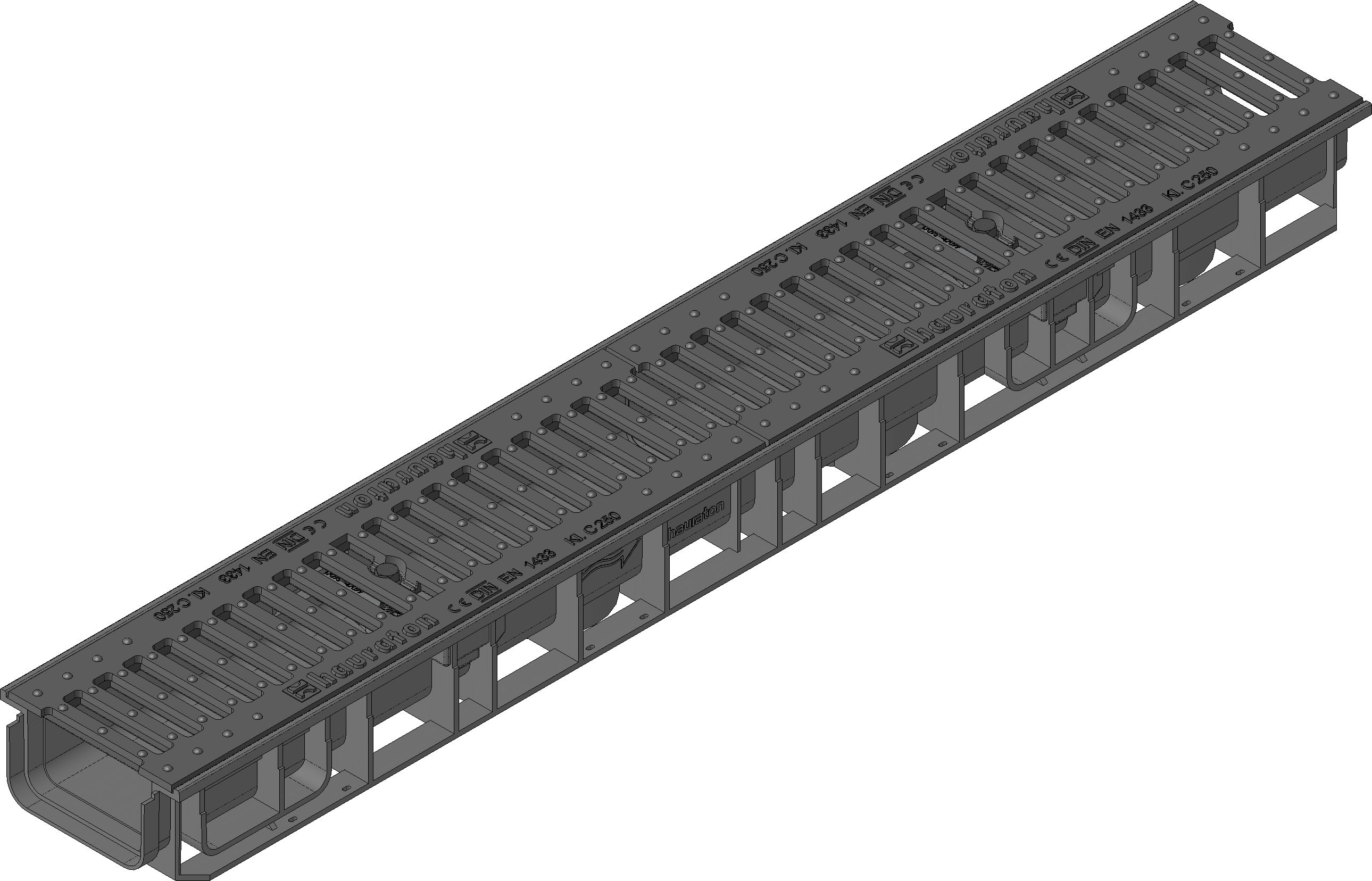

RECYFIX STANDARD 100 type 80 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75, with ductile iron cover made of spheroidal ductile iron GJS 500-7, slot width 14 mm, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 1000x150x80 mm, item no. 40248
Verpackungseinheit
88 Unit / Pallet
