Article No. 40231
RECYFIX STANDARD 100, trafficable
Type 01 with slotted cover SW 75/9 mm, locked, 1,0 m
Questions?
Technical drawing
Drawing
Drawing (CAD)
Top view

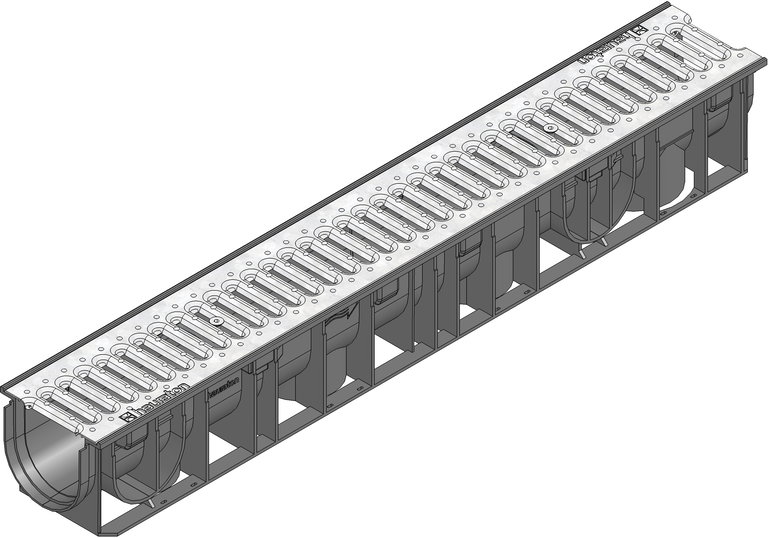

Product image
Data Sheet
Technical information and metrics
Article No.
40231
Length
1000 mm
Width
150 mm
Height
134 mm
Einlegetiefe
3 mm
Weight
3.99 kg
Material
Galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
242.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
strip galvanized steel
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX STANDARD 100 Channel Type 01 with slotted cover, galvanised, trafficable with locking device
Produktbeschreibung
RECYFIX STANDARD 100 type 01- channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with slotted cover, galvanised, with locking device, trafficable, locked, slot width 75/9, L/W/H 1000x150x134 mm, item no. 40231
Verpackungseinheit
49 Unit / Pallet
