Article No. 40297
RECYFIX STANDARD 100, trafficable
Type 010 with mesh cover MW 30/10 mm, galvanised, locked, 1,0 m
Questions?
Top view

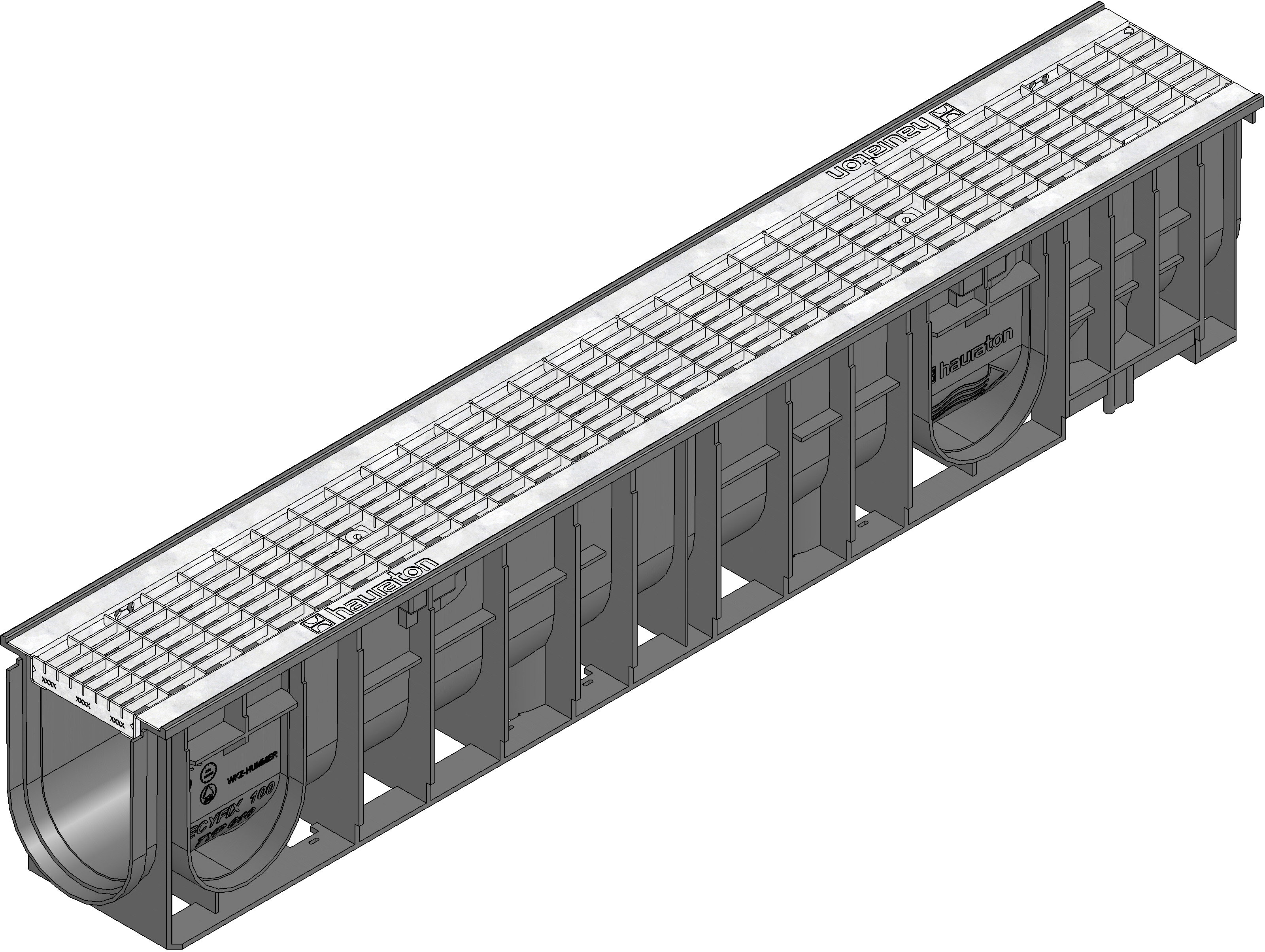

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
40297
Length
1000 mm
Width
150 mm
Height
185 mm
Einlegetiefe
2 mm
Weight
5.28 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
760.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
hot-dip galvanised steel
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX STANDARD 100 Channel Type 010 with mesh cover MW 30/10, galvanised, trafficable with locking device, length 1,0 m
Produktbeschreibung
RECYFIX STANDARD 100 type 010 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with mesh cover, mesh width 30/10, with locking device, trafficable, galvanised, L/W/H 1000x150x185 mm, item no. 40297
Verpackungseinheit
42 Unit / Pallet
