Article No. 40296

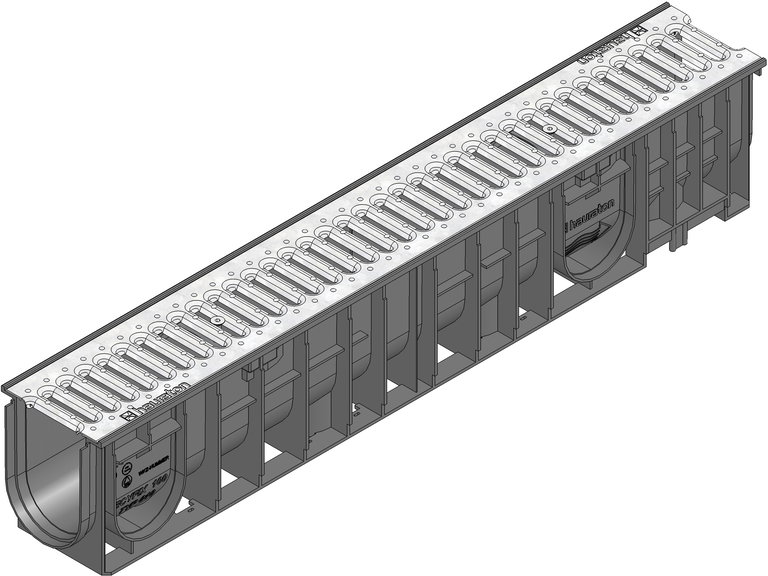

RECYFIX STANDARD 100, trafficable
Type 010 with slotted cover SW 75/9 mm, galvanised, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
40296
Length
1000 mm
Width
150 mm
Height
185 mm
Einlegetiefe
3 mm
Weight
4.58 kg
Material
Galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
242.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
strip galvanized steel
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX STANDARD 100 Channel Type 010 with slotted cover, galvanised, trafficable, with locking device, length 1,0 m
Produktbeschreibung
RECYFIX STANDARD 100 type 010 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with slotted cover, galvanised, with locking device, slot width 75/9, trafficable, L/W/H 1000x150x185 mm, item no. 40296
Verpackungseinheit
42 Unit / Pallet
