Article No. 40237

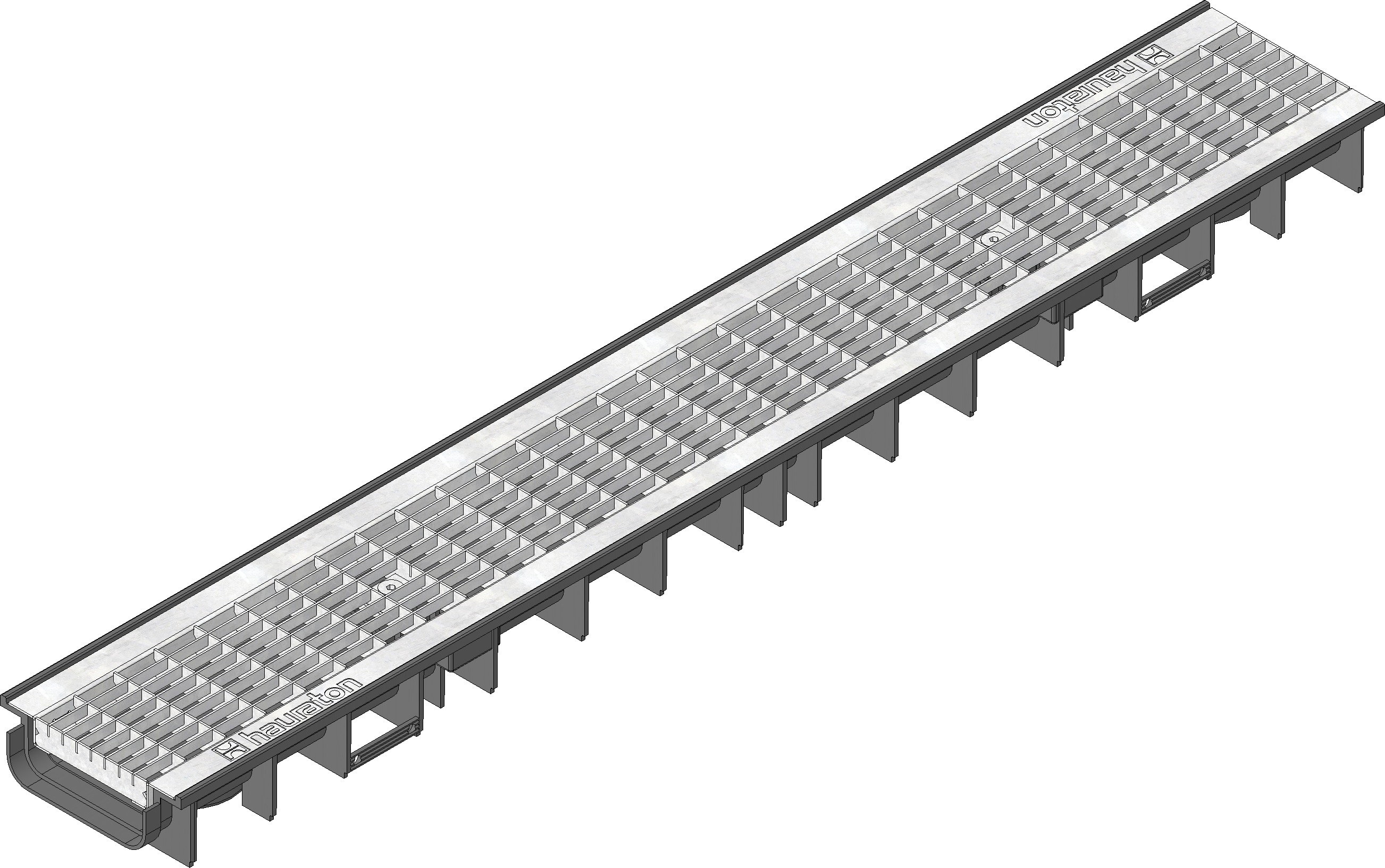

RECYFIX STANDARD 100, trafficable
Type 60 with mesh cover MW 30/10 mm, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
40237
Length
1000 mm
Width
150 mm
Height
60 mm
Einlegetiefe
2 mm
Weight
3.72 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
760.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
hot-dip galvanised steel
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX STANDARD 100 Channel Type 60 with mesh cover, MW 30/10, galvanised, trafficable with locking device
Produktbeschreibung
RECYFIX STANDARD 100 type 60 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75, with mesh cover, mesh width 30/10 and locking device, trafficable, galvanised, L/W/H 1000x146x60 mm, item no. 40237
Verpackungseinheit
88 Unit / Pallet
